Arlon
Arlon Black 920lm 2700K Ra>80 Trailing edge dimming
Article code:
653604
EAN:
7021986536041
Download
Electrical
Wattage:
10W
System wattage:
10W
Voltage:
220-240V
Frequency (Hz):
50/60Hz
Max. luminaires per circuit breaker:
B10: 31, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Light source included:
Yes
Luminous flux:
920lm
Efficacy:
92 lm/W
Colour temperature:
2700K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B20>100,000

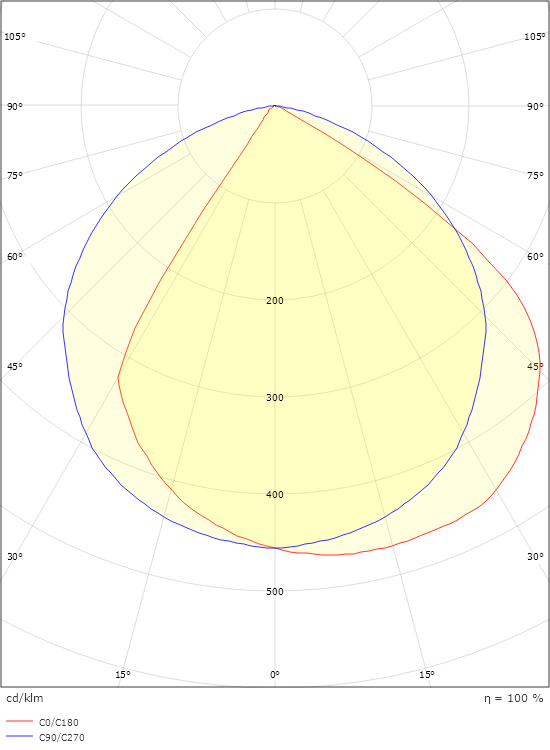

Light distribution:
Direct
Optic:
Difuser
Visible flicker (PstLM):
0.08
Stroboscopic flicker (SVM):
0.75
ULOR (<1%):
Yes
Control/Dimming
Type:
Trailing edge dimming
Driver:
350mA
Protection
Luminaire class:
Class II
IK Class:
IK10
IP Class:
IP65
Energy and approvals
Contains light source of energy class:
C
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Aluminium
Colour:
Black (RAL 9004)
Optics:
Polycarbonat (PC)
Mounting/Connection
Mounting:
Wall, Indoor / Outdoor
Connection:
Screwless terminal block
Dimensions
Length (mm) L:
270
Width (mm) W:
150
Height (mm) H:
47
Weight (kg) gross/net:
1.5 / 1.35
Packaging
Packing dimensions (mm):
275 x 155 x 60
