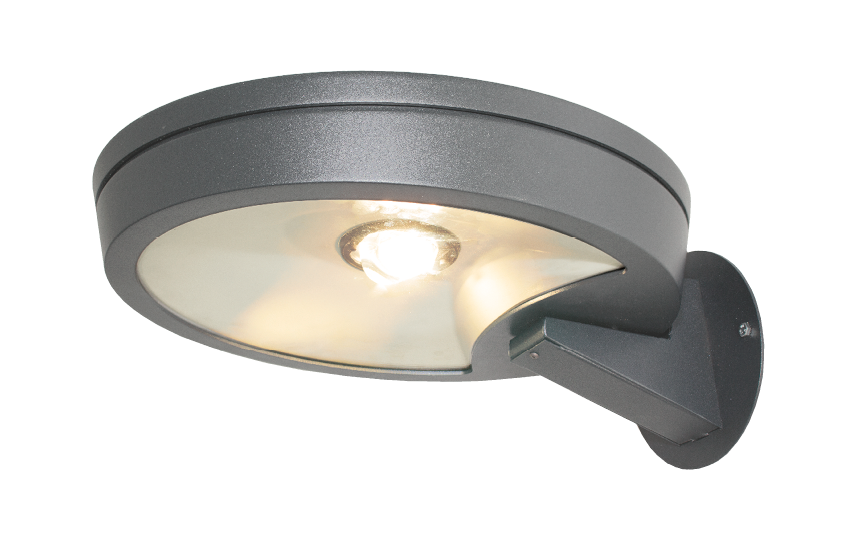

CircLED Wall
CircLED Wall Grey 1640lm 4000K Ra>80 On/Off
Article code:
8246086136
EAN:
5703821166416
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
14W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 32, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
1640lm
Efficacy:
117 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 2
Lifetime:
L90/B10>100,000

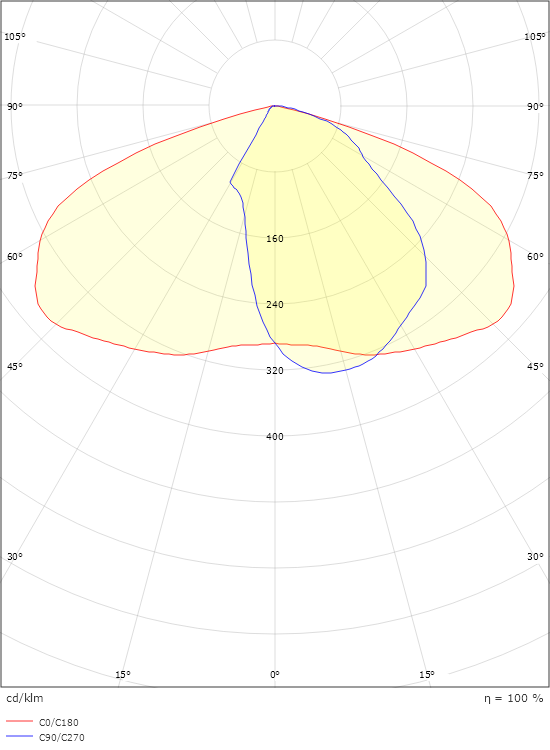

Light distribution:
Single Lens
Optic:
Lens
ULOR (<1%):
Yes
Control/Dimming
Type:
On/Off
Protection
Luminaire class:
Class I
IK Class:
IK09
IP Class:
IP54
Integrated surge protection:
Integrated (min. 4 kV)
Energy and approvals
Contains light source of energy class:
D
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Die-cast aluminium
Colour:
Grey (structure 2150 sablé)
Optics:
Tempered glass
Mounting/Connection
Mounting:
Wall, Outdoor
Dimensions
Length (mm) L:
498
Width (mm) W:
390
Height (mm) H:
201
Weight (kg) gross/net:
9.2 / 9
Packaging
Packing dimensions (mm):
525 x 395 x 210
