Frosta 480
Frosta 480 White 3150lm 3000K Ra>80 DALI-2 / Push Dim
Article code:
211707
EAN:
7021982117077
Download
Electrical
System wattage:
24W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 31, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
3150lm
Efficacy:
131 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B10>100,000
Lifetime:
L90>60,000

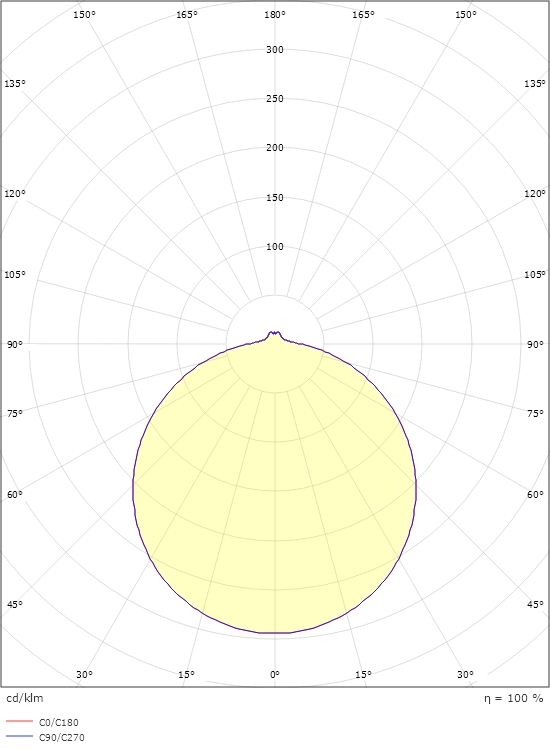

Light distribution:
Direct/Indirect 92/8%
Optic:
Acrylic diffuser
Beam angle:
117°
Photobiological safety:
RG 0
Control/Dimming
Type:
DALI-2 / Push Dim
Protection
Luminaire class:
Class II
IK Class:
IK08
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
B
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Steel
Colour:
White (RAL 9003)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Surface, Indoor
Connection:
Screwless terminal block
Dimensions
Height (mm) H:
90
Diameter (mm) D:
480
Weight (kg) gross/net:
4 / 2.65
Packaging
Packing dimensions (mm):
515 x 500 x 140
