Place
Place Grey 2530lm 4000K Ra>80 Lumistep LS8
Article code:
8246090902
EAN:
5703821172967
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
21W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 10, B16: 17, C10: 16, C16: 27
Light technic
Type of light source:
LED
Luminous flux:
2530lm
Efficacy:
120 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L90/B10>50,000
Lifetime:
L80/B10>100,000

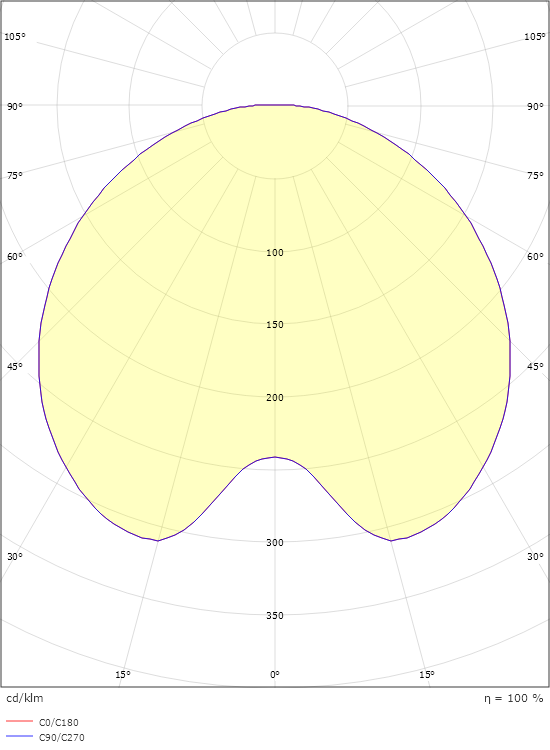

Light distribution:
Direct
Control/Dimming
Type:
Lumistep LS8
Protection
Luminaire class:
Class II
IK Class:
IK10
IP Class:
IP66
Integrated surge protection:
Integrated (min. 8 kV)
Energy and approvals
Contains light source of energy class:
B
Materials and finish
Housing:
Die-cast aluminium
Colour:
Grey (structure 2150 sablé)
Optics:
Polycarbonat (PC)
Mounting/Connection
Mounting:
Post - top (Ø60mm), Outdoor
Cable:
Cable 2x1mm² 6m
Wind projected area:
0,0775m² - Max 10 kg
Dimensions
Height (mm) H:
291
Diameter (mm) D:
600
Weight (kg) gross/net:
7.8 / 7.6
Packaging
Packing dimensions (mm):
625 x 625 x 315
