Sense Basic
Sense Basic 600x600 White Incl driver 4040lm 4000K Ra>80 DALI-2 / Push Dim
Article code:
212188
EAN:
7021982121883
Download
Electrical
System wattage:
31W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 31, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
4040lm
Efficacy:
130 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B20>100,000

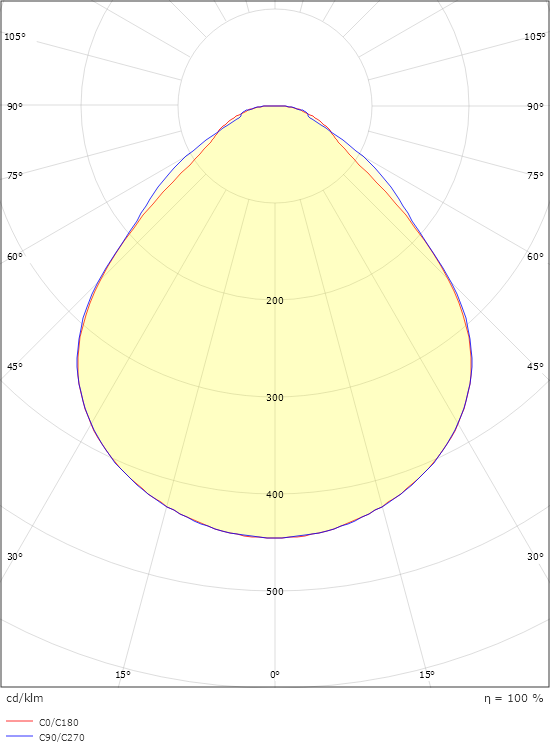

Light distribution:
Direct
Optic:
Opalprism

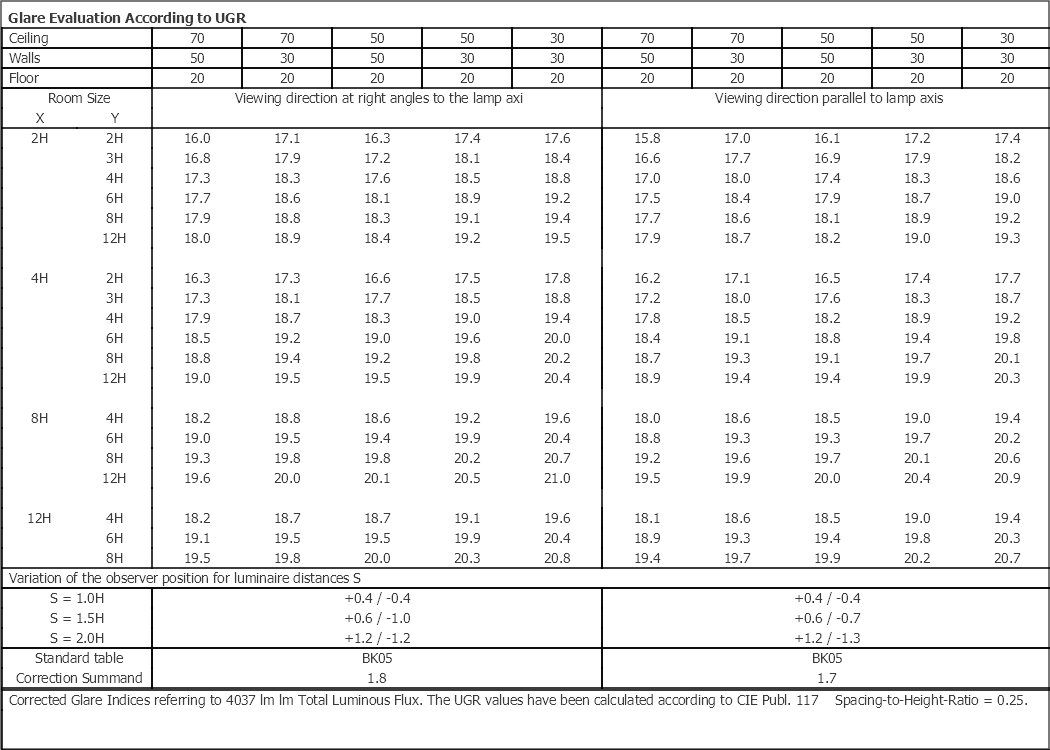

UGR:
UGR<19
Control/Dimming
Type:
DALI-2 / Push Dim
Protection
Luminaire class:
Class II SELV
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
C
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Steel
Colour:
White smooth (Ral 9016 gloss 30)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Recessed, Indoor
Module:
600x600
Connection:
5 pol Linect / screwless terminal block

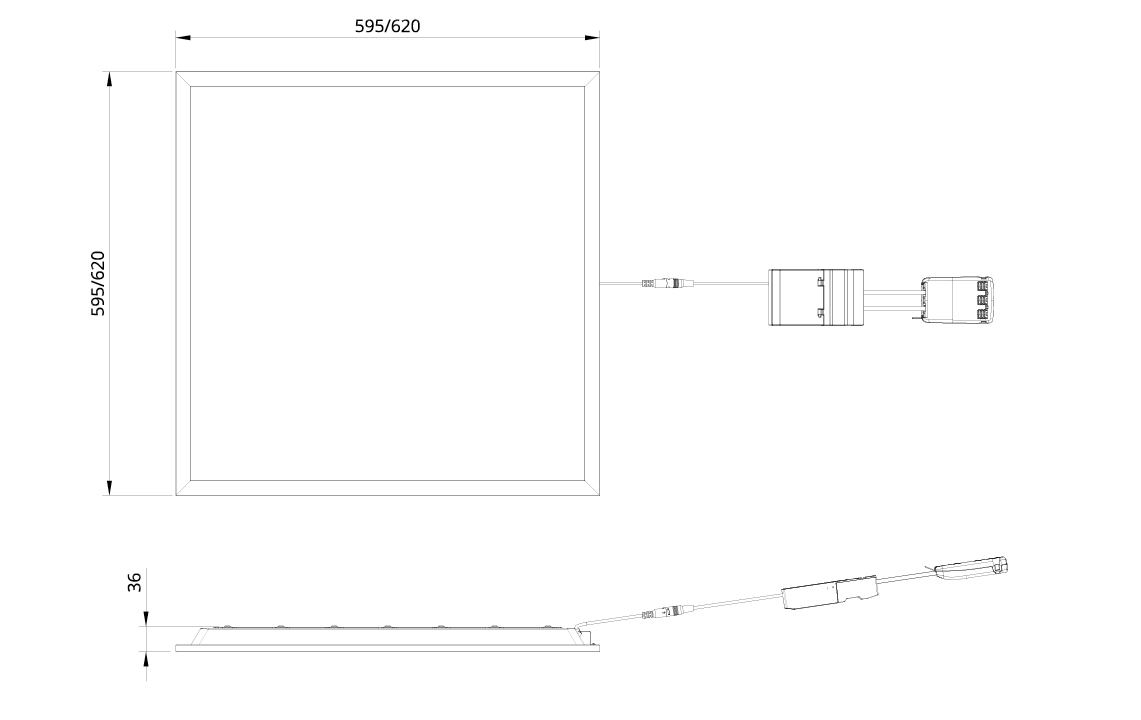

Dimensions
Length (mm) L:
595
Width (mm) W:
595
Height (mm) H:
36
Weight (kg) gross/net:
2.925 / 2.4
Packaging
Packing dimensions (mm):
700 x 685 x 57.5
Number per pack:
4
