Disc 290
Disc 290 White 1900lm 2700K Ra>80 DALI-2 / Push Dim
Article code:
606040
EAN:
7021986060409
Download
Electrical
System wattage:
17W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 35, B16: 55, C10: 57, C16: 92
Light technic
Type of light source:
LED
Luminous flux:
1900lm
Efficacy:
112 lm/W
Colour temperature:
2700K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B20>100,000
Lifetime:
L90>50,000

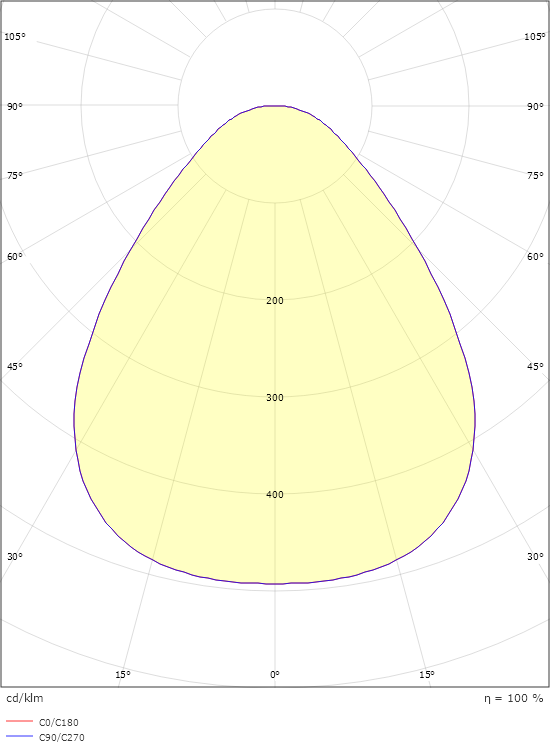

Light distribution:
Direct
Optic:
Opalprism
Beam angle:
85°
UGR:
UGR<25
Control/Dimming
Type:
DALI-2 / Push Dim
Protection
Luminaire class:
Class II
IK Class:
IK10
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
D
Breeam:
Fulfils Hea 01 for flicker free lighting
BVB:
Yes
Materials and finish
Housing:
Aluminium
Colour:
White
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Surface, Indoor
Connection:
Screwless terminal block
Dimensions
Height (mm) H:
55
Diameter (mm) D:
288
Weight (kg) gross/net:
2.005 / 1.846
Packaging
Packing dimensions (mm):
308 x 303 x 60
