Facet II TW
Facet II TW 1700 White 6640lm 2700-6500K Ra>80 Tunable White DALI Type 8
Article code:
8246091804
EAN:
5703821173995
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
57W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 6, B16: 11, C10: 10, C16: 18
Light technic
Type of light source:
LED
Luminous flux:
6640lm
Efficacy:
116 lm/W
Colour temperature:
2700-6500K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B10>100,000
Lifetime:
L94>50,000

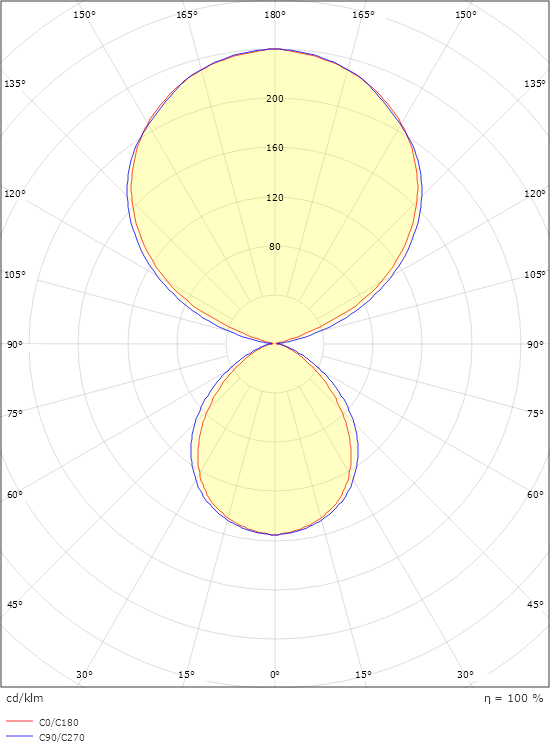

Light distribution:
Direct/Indirect 35/65%
Optic:
Lens C, prismatic Conical
UGR:
UGR<16
Photobiological safety:
RG 1
Control/Dimming
Type:
Tunable White DALI Type 8
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
D
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Sheet steel
Colour:
White (RAL 9010, 20% gloss)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Suspended, Indoor
Module:
1700
Wire set:
2x2m wire kit w/loop M4
Cable:
Cable 5x0,75mm² 2,5m white
Dimensions
Length (mm) L:
1756
Width (mm) W:
112
Height (mm) H:
80
Weight (kg) gross/net:
7.9 / 7.7
Packaging
Packing dimensions (mm):
1790 x 114 x 90
