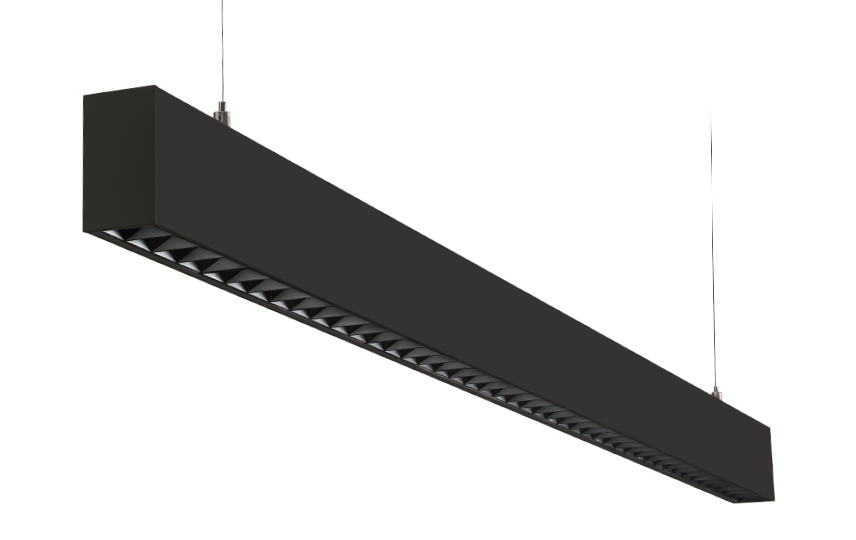

Inspire
Inspire Black Dim 1X pull switch 4300lm 4000K Ra>80 Dim 1x pull switch
Article code:
212473
EAN:
7021982124730
Download
Electrical
System wattage:
34W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 14, B16: 23, C10: 22, C16: 36
Leakage current (mA):
0.29
Light technic
Type of light source:
LED
Luminous flux:
4300lm
Efficacy:
126 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B20>100,000
Lifetime:
L90>50,000
Light distribution:
Direct/Indirect 50/50%
Optic:
Cubic Optic Black

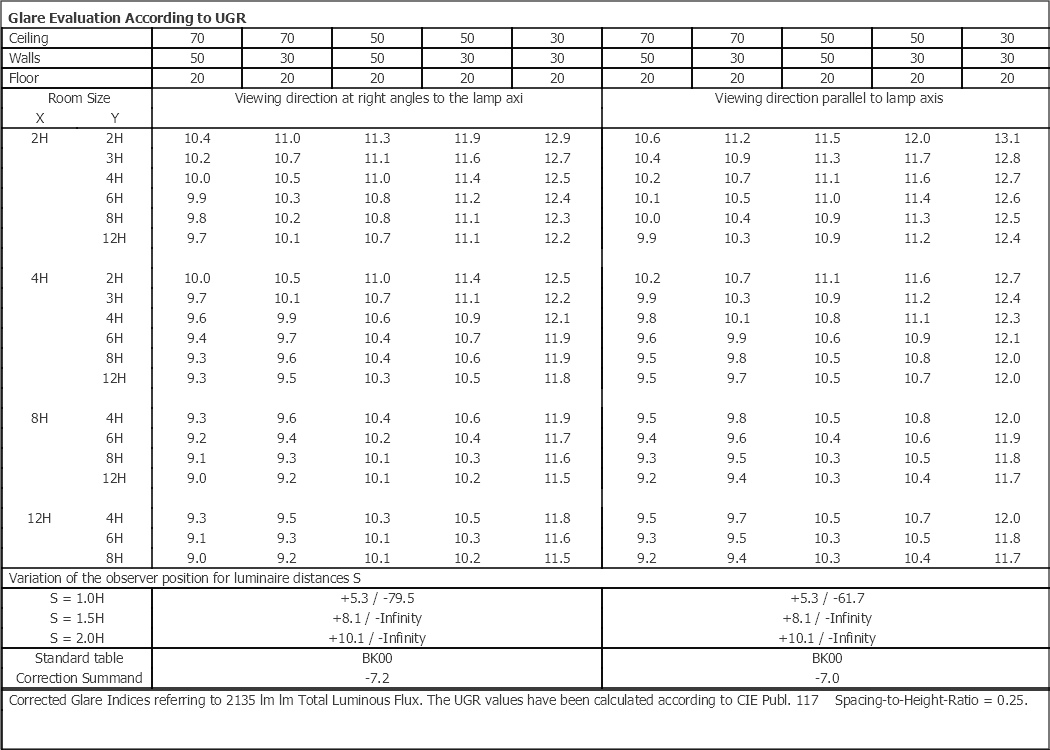

UGR:
UGR<10
Photobiological safety:
RG 1
Control/Dimming
Type:
Dim 1x pull switch
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
C
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Aluminium
Colour:
Black
Optics:
Polycarbonat (PC)
Mounting/Connection
Mounting:
Suspended, Indoor
Wire set:
2x2m wire kit
Cable:
Cable 3x0,75mm² 2,5m
Dimensions
Length (mm) L:
1243
Width (mm) W:
38
Height (mm) H:
67
Weight (kg) gross/net:
3.6 / 3.3
Packaging
Packing dimensions (mm):
1365 x 90 x 61
