Rax ECO 200
Rax ECO 200 White 3000/4000K Ra>80 DALI-2
Article code:
212587
EAN:
7021982125874
Download
Electrical
Wattage:
12W/20W
Voltage:
220-240V
Frequency (Hz):
50/60Hz
Max. luminaires per circuit breaker:
B10: 40, B16: 60, C10: 40, C16: 60
Light technic
Type of light source:
LED
Luminous flux:
1400lm/1480lm/2210lm/2360lm
Efficacy:
117/123/111/118lm/W
Colour temperature:
3000/4000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B20>50,000

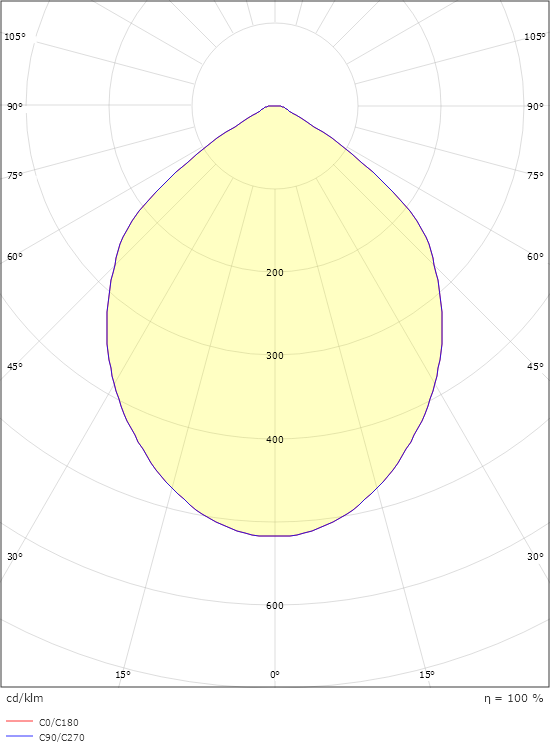

Light distribution:
Direct
Optic:
Reflector
Beam angle:
95°
Control/Dimming
Type:
DALI-2
Protection
Luminaire class:
Class II
IP Class:
IP20
Materials and finish
Housing:
Polycarbonat (PC)
Colour:
White (RAL 9003)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Indoor
Connection:
5 pol Linect / screwless terminal block
Dimensions
Height (mm) H:
93
Diameter (mm) D:
216
Cut-out (mm):
200
Ceiling void depth (mm):
93
Weight (kg) gross/net:
1.03 / 0.87
Packaging
Packing dimensions (mm):
240 x 222 x 120
