Wax
Wax Grey 13° 3200lm 3000K Ra>80 Lumistep LS8 50% Dim
Article code:
8246090669
EAN:
5703821172974
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
48W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 7, B16: 12, C10: 12, C16: 20
Light technic
Type of light source:
LED
Luminous flux:
3200lm
Efficacy:
67 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 2
Lifetime:
L90/B10>100,000

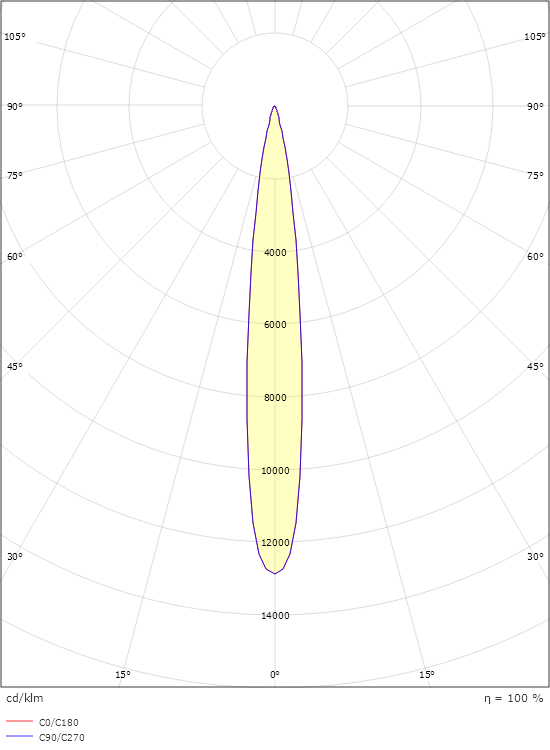

Light distribution:
Direct
Optic:
Reflector spot 13dg.
Beam angle:
13°
ULOR (<1%):
Yes, up to 64° tilt angle
Control/Dimming
Type:
Lumistep LS8 50% Dim
Protection
Luminaire class:
Class II
IK Class:
IK07
IP Class:
IP66
Integrated surge protection:
Integrated (min. 4 kV)
Energy and approvals
Contains light source of energy class:
E
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Die-cast aluminium
Colour:
Grey (structure 2150 sablé)
Optics:
Tempered glass
Mounting/Connection
Mounting:
Pole, wall, bollard or earthing rod, Outdoor
Cable:
Cable 2x1mm² 10m
Wind projected area:
0,0403m² - Max 5,3 kg
Dimensions
Height (mm) H:
268
Diameter (mm) D:
180
Weight (kg) gross/net:
4.7 / 4.5
Packaging
Packing dimensions (mm):
275 x 275 x 275
