Sense Round

Sense White 190 IsoSafe 730lm 2700K Ra>80 Trailing edge

Article code
212260
EAN
7021982122606
Back to articlelist

Overview

Efficacy
112 lm/W
Lumen
730lm
IP Class
IP40/IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • isosafe
  • ik08
  • ip20ip40
  • klasse_2
  • selv
  • ce
  • enec

Tools

Downloads

Specification sheet 212260 Revit file - Generic Sense 190 - Generic Revit file - Ceiling Based Sense 190 - ceiling based

See more

Mounting instruction Sense 190 Phase cut_User Manual Eulumdat file (ldt) 7021982122606_Sense190MattWhite6WLED2700KRa80PhaseDim-29997 Dialux file (uld) 7021982122606_Sense190MattWhite6WLED2700KRa80PhaseDim Relux file (rolf) 7021982122606_Sense_White_190_IsoSafe_620lm_2700K_Ra_80_Trailing_edge_dimming EPD NEPD-12395-12445_Sense-190-Opal-Prism CE Declaration Sense Round ENEC Certificate Sense Round

How to specify

Text copied to clipboard

Sense White 190 IsoSafe 730lm 2700K Ra>80 Trailing edge, Article code: 212260, EAN: 7021982122606, IP40/IP20, IK08, Electrical: System wattage: 6.5W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 730lm, Efficacy: 112 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opal, UGR: UGR<25, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II SELV, IK Class: IK08, IP Class: IP40/IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 25, Diameter (mm) D: 190, Cut-out (mm): 170, Ceiling void depth (mm): 25, Weight (kg) gross/net: 0.814 / 0.671, Packaging: Packaging dimensions (mm): 195 x 195 x 75

Electrical

System wattage
6.5W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
730lm
Efficacy
112 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

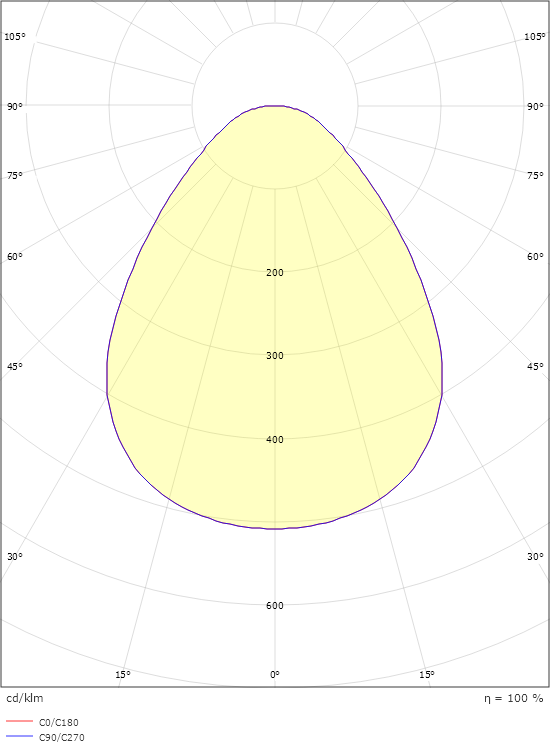

Light distribution
Direct
Optic
Opal
UGR
UGR<25
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II SELV
IK Class
IK08
IP Class
IP40/IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
25
Diameter (mm) D
190
Cut-out (mm)
170
Ceiling void depth (mm)
25
Weight (kg) gross/net
0.814 / 0.671

Packaging

Packaging dimensions (mm)
195 x 195 x 75
