Facet
Facet White 3240lm 3000K Ra>80 2x pull switch, on/off
- Article code
- 8246086084
- EAN
- 5703821166096
Overview
- Efficacy
- 141 lm/W
- Lumen
- 3240lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B10>
- Mounting
- Suspended, Indoor
Electrical
- System wattage
- 23W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 57, B16: 90, C10: 94, C16: 153
- Leakage current (mA)
- 0.78
Light technic
- Type of light source
- LED
- Luminous flux
- 3240lm
- Efficacy
- 141 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B10>100,000
- Lifetime
- L94>50,000

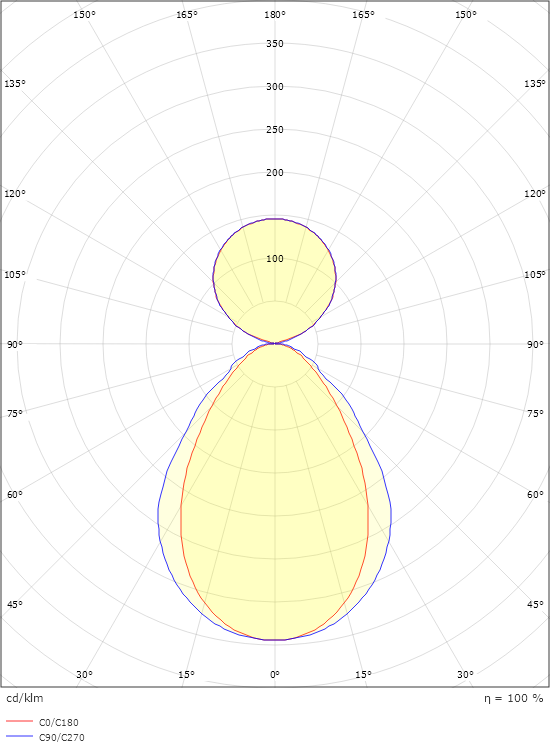

- Light distribution
- Direct/Indirect 60/40%
- Optic
- Lens C, prismatic Conical

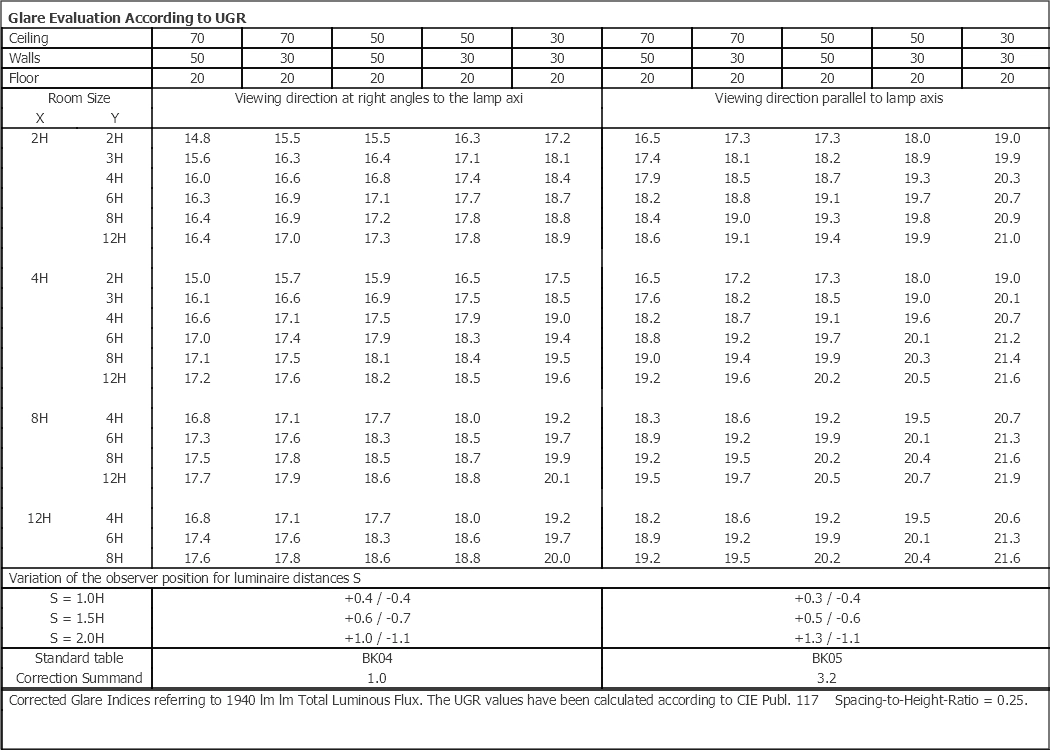

- UGR
- UGR<19
- Photobiological safety
- RG 1
Control/Dimming
- Type
- 2x pull switch, on/off
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- BVB
- Yes
Materials and finish
- Housing
- Sheet steel
- Colour
- White (RAL 9010, 20% gloss)
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Suspended, Indoor
- Wire set
- 2x2m wire kit w/loop M4
- Cable
- Cable 3x0,75mm² 2,5m w/ Schuko white
Dimensions
- Length (mm) L
- 1164
- Width (mm) W
- 64
- Height (mm) H
- 80
- Weight (kg) gross/net
- 4.15 / 3.95
Packaging
- Packaging dimensions (mm)
- 1215 x 66 x 90
