Inspire

Inspire Black Dim 1X pull switch 4300lm 4000K Ra>80 Dim 1x pull switch

Article code
212473
EAN
7021982124730
Back to articlelist

Overview

Efficacy
126 lm/W
Lumen
4300lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 212473 Eulumdat file (ldt) 7021982124730_Inspire Black 4300lm 4000K Ra80 Dim 1x pull switch Dialux file (uld) 7021982124730_Inspire Black 4300lm 4000K Ra80 Dim 1x pull switch

See more

Relux file (rolf) 7021982124730_Inspire_Black_4300lm_4000K_Ra_80_Dim_1x_pull_switch EPD NEPD-9226-8812_Inspire-DIM Revit file - Generic Inspire - Generic Revit file - Ceiling Based Inspire - ceiling based Mounting instruction Inspire_User Manual CE Declaration Inspire ENEC Certificate Inspire

How to specify

Text copied to clipboard

Inspire Black Dim 1X pull switch 4300lm 4000K Ra>80 Dim 1x pull switch, Article code: 212473, EAN: 7021982124730, IP20, Electrical: System wattage: 34W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 14, B16: 23, C10: 22, C16: 36, Leakage current (mA): 0.29, Light technic: Type of light source: LED, Luminous flux: 4300lm, Efficacy: 126 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct/Indirect 50/50%, Optic: Cubic Optic Black, UGR: UGR<10, Photobiological safety: RG 1, Control/Dimming: Type: Dim 1x pull switch, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Suspended, Indoor, Wire set: 2x2m wire kit, Cable: Cable 3x0,75mm² 2,5m, Dimensions: Length (mm) L: 1243, Width (mm) W: 38, Height (mm) H: 67, Weight (kg) gross/net: 3.6 / 3.3, Packaging: Packaging dimensions (mm): 1365 x 90 x 61

Electrical

System wattage
34W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 14, B16: 23, C10: 22, C16: 36
Leakage current (mA)
0.29

Light technic

Type of light source
LED
Luminous flux
4300lm
Efficacy
126 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000
Light distribution
Direct/Indirect 50/50%
Optic
Cubic Optic Black

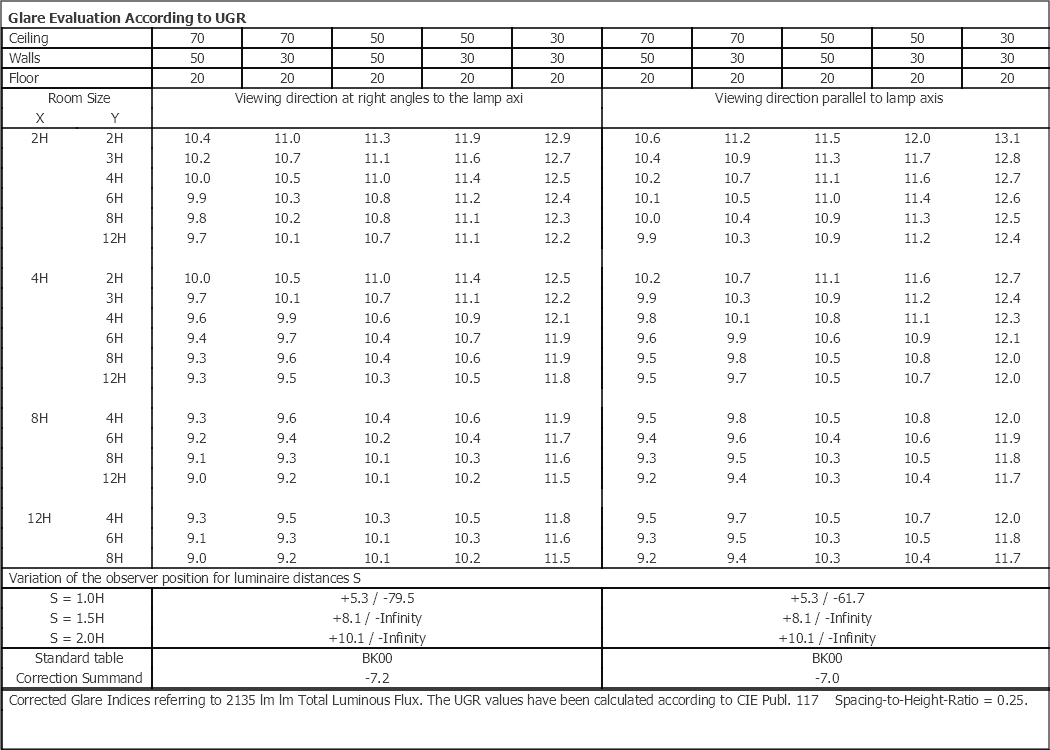

UGR
UGR<10
Photobiological safety
RG 1

Control/Dimming

Type
Dim 1x pull switch

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Suspended, Indoor
Wire set
2x2m wire kit
Cable
Cable 3x0,75mm² 2,5m

Dimensions

Length (mm) L
1243
Width (mm) W
38
Height (mm) H
67
Weight (kg) gross/net
3.6 / 3.3

Packaging

Packaging dimensions (mm)
1365 x 90 x 61
