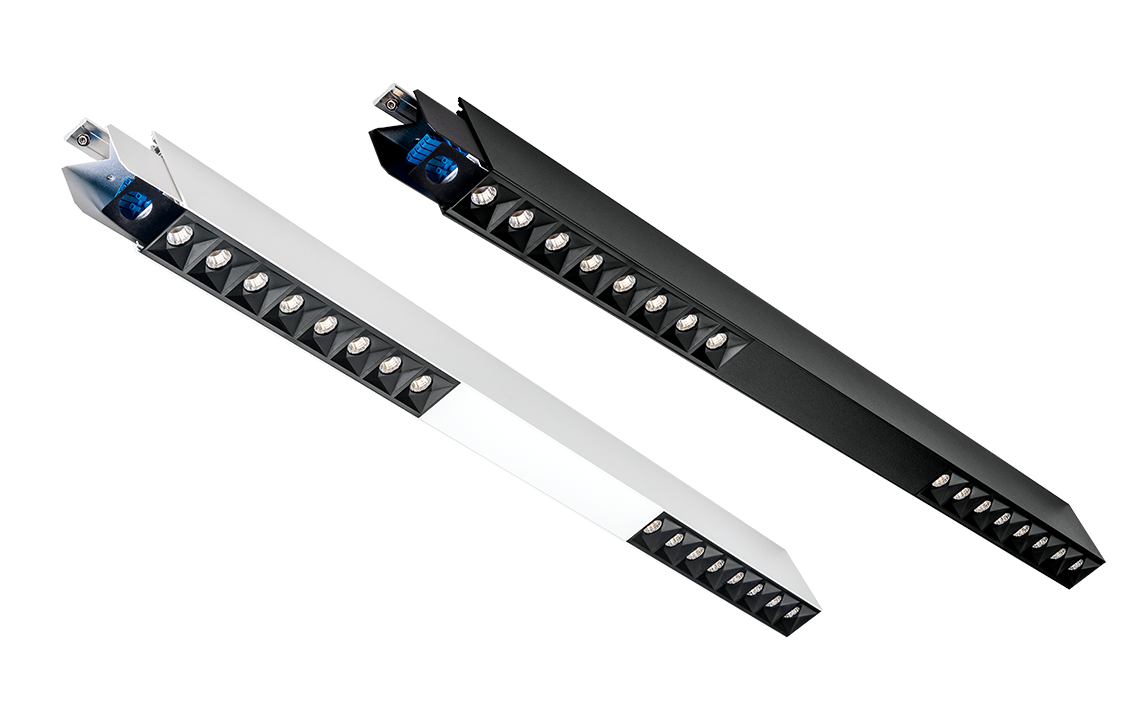

Lineal Cubic Surface-Suspended

Lineal Cubic Surface-Suspended is a modular system solution for suspended or surface mounting, with a clear distribution for effect lighting.

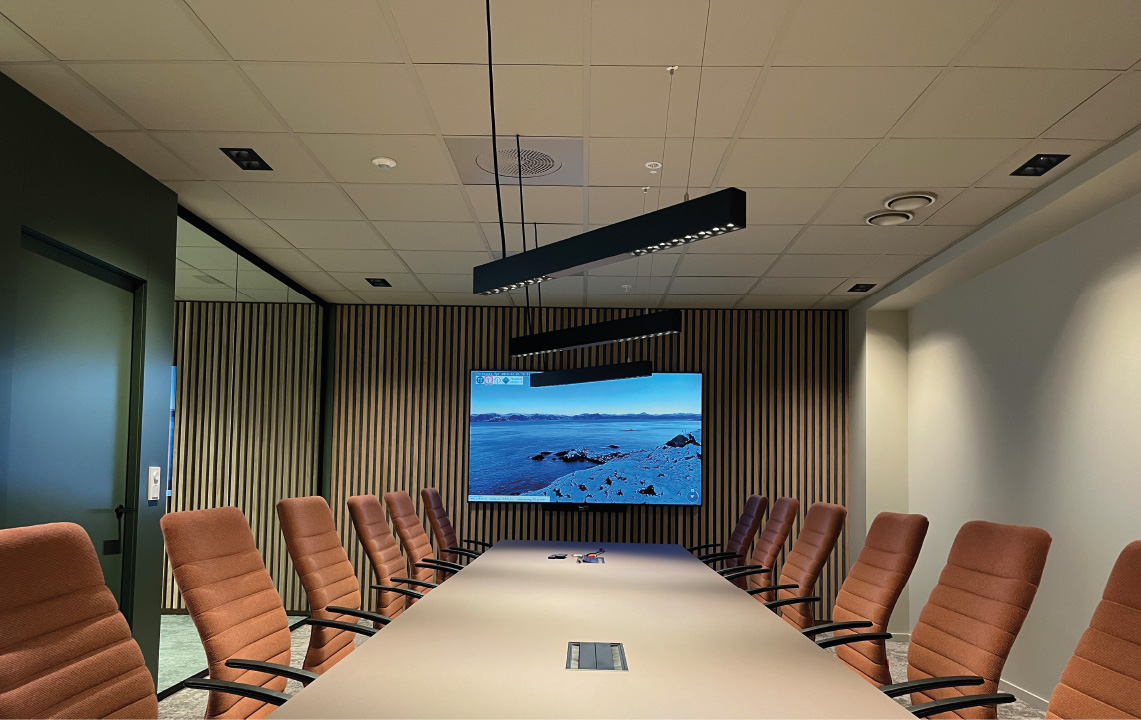

The efficient lighting solution optimises visual comfort and light quality and makes Lineal Cubic Surface-Suspended ideal for many applications such as offices, corridors and foyers or as decorative lighting.For each continuous line, you need one or more straight lines and a start kit. Lineal Cubic Surface can be combined with Lineal Surface and Lineal Suspended, enabling creative lighting designs. Brackets for surface mounting are included, wire kit for suspended mounting is sold separately. For each continuous line, you need one or more straight lines and a start kit.

Article list

Lineal Cubic Surface-Suspended

Indoor Direct Surface SDCM: 3 Class I IP20 Ra>80 L90/B10> 100,000

Filters

Color

Module

Colour temperature

Lumen

						Others	Tools
8246095758	840	3000K	18W	2230lm	DALI-2 / Push Dim	124 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095745	840	3000K	18W	2230lm	DALI-2 / Push Dim	124 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095790	840	4000K	18W	2300lm	DALI-2 / Push Dim	128 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095787	840	4000K	18W	2300lm	DALI-2 / Push Dim	128 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

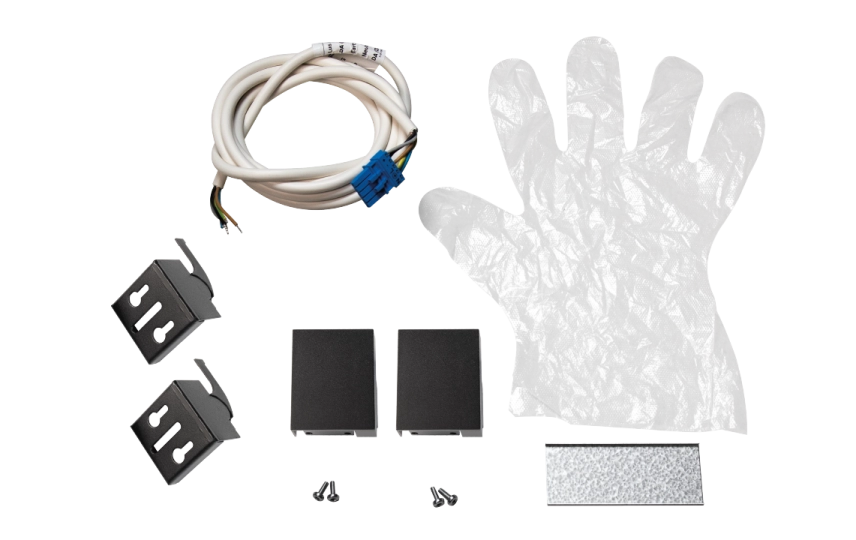

8246095910	Start kit					L140 x W140 x H55, Cable 5x0,75mm² 2,5m Halogen free	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095923	Start kit					L140 x W140 x H55, Cable 5x0,75mm² 2,5m Halogen free	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
8246095758	840	3000K	18W	2230lm	DALI-2 / Push Dim	124 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095745	840	3000K	18W	2230lm	DALI-2 / Push Dim	124 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095790	840	4000K	18W	2300lm	DALI-2 / Push Dim	128 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095787	840	4000K	18W	2300lm	DALI-2 / Push Dim	128 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095910	Start kit					L140 x W140 x H55, Cable 5x0,75mm² 2,5m Halogen free	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095923	Start kit					L140 x W140 x H55, Cable 5x0,75mm² 2,5m Halogen free	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
8241000346	Lineal Wall Start kit Black	L265 x W265 x H70	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000348	Lineal Wall Extension kit Black	L115 x W93 x H64	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000354	Lineal T-ceiling Start kit Black	L285 x W240 x H28	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000356	Lineal T-ceiling Extension kit Black	L120 x W94 x H65	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044942	Lineal suspended Start kit Black	L140 x W140 x H55	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212255	T-profil White Suspension Rail 600mm	L596 x W35 x H17	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000344	Lineal Wall Start kit White	L265 x W265 x H70	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000347	Lineal Wall Extension kit White	L115 x W93 x H64	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000353	Lineal T-ceiling Start kit White	L285 x W240 x H28	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000355	Lineal T-ceiling Extension kit White	L120 x W94 x H65	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044955	Lineal suspended Start kit White	L140 x W140 x H55	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8249045116	Lineal Wire kit 1 x 2m		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.
