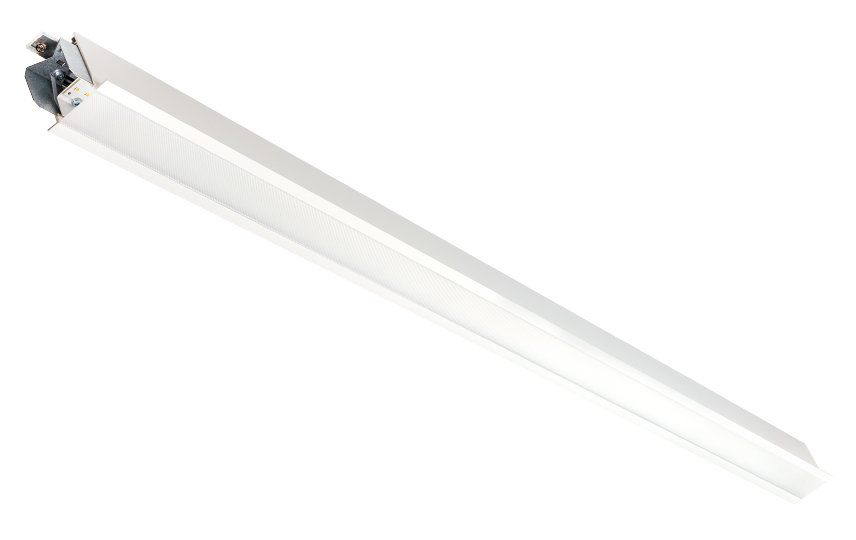

Lineal Recessed

Lineal Recessed is a modular system solution for recessed mounting, with a perfect, well thought-out design for continuous light in illuminated lines. Lineal Recessed appears elegant in both ceilings and walls.It is easy to install in different ceiling plate thicknesses with a 90 degree turn bracket. The efficient lighting solution optimises visual comfort and light quality, and makes Lineal Trim ideal for many applications such as offices, corridors and foyers or as decorative lighting.For each continuous line, you need one or more straight lines and/or corners, a start kit and a front cover. Lineal Recessed can be combined with Lineal Cubic Recessed, enabling creative lighting designs.

Article list

Lineal Recessed

Indoor Direct Recessed SDCM: 3 Class I IK08 IP20 Ra>80 L80/B10> 100,000

Filters

Module

Colour temperature

System wattage

Lumen

						Others	Tools
8246095648	840	3000K	13W	1380lm	DALI-2 / Push Dim	106 lm/W, L841 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095664	1120	3000K	17W	1870lm	DALI-2 / Push Dim	110 lm/W, L1121 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095677	1400	3000K	21W	2320lm	DALI-2 / Push Dim	110 lm/W, L1401 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095703	Corner	3000K	17W	1870lm	DALI-2 / Push Dim	110 lm/W, L627 x W581 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095059	1120	4000K	17W	1970lm	DALI-2 / Push Dim	116 lm/W, L1121 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095651	840	4000K	13W	1450lm	DALI-2 / Push Dim	112 lm/W, L841 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095680	1400	4000K	21W	2440lm	DALI-2 / Push Dim	116 lm/W, L1401 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095716	Corner	4000K	17W	1970lm	DALI-2 / Push Dim	116 lm/W, L627 x W581 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
8246095648	840	3000K	13W	1380lm	DALI-2 / Push Dim	106 lm/W, L841 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095664	1120	3000K	17W	1870lm	DALI-2 / Push Dim	110 lm/W, L1121 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095677	1400	3000K	21W	2320lm	DALI-2 / Push Dim	110 lm/W, L1401 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095703	Corner	3000K	17W	1870lm	DALI-2 / Push Dim	110 lm/W, L627 x W581 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095059	1120	4000K	17W	1970lm	DALI-2 / Push Dim	116 lm/W, L1121 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095651	840	4000K	13W	1450lm	DALI-2 / Push Dim	112 lm/W, L841 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095680	1400	4000K	21W	2440lm	DALI-2 / Push Dim	116 lm/W, L1401 x W62 x H62, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095716	Corner	4000K	17W	1970lm	DALI-2 / Push Dim	116 lm/W, L627 x W581 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
8249045080	Lineal 2240 Black Blind profile Front	L2240 x W38 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095693	Lineal recessed Start kit White DALI-2 / Push Dim	L285 x W240 x H36	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246096207	Lineal recessed 1120 White Blind profile DALI-2 / Push Dim	L1121 x W62 x H62	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249045077	Lineal 2240 White Blind profile Front	L2240 x W38 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044968	Lineal 2800 Front	L2800 x W38 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044971	Lineal 5600 Front	L5600 x W38 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044984	Lineal 8400 Front	L8400 x W38 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

References

Custom made solutions

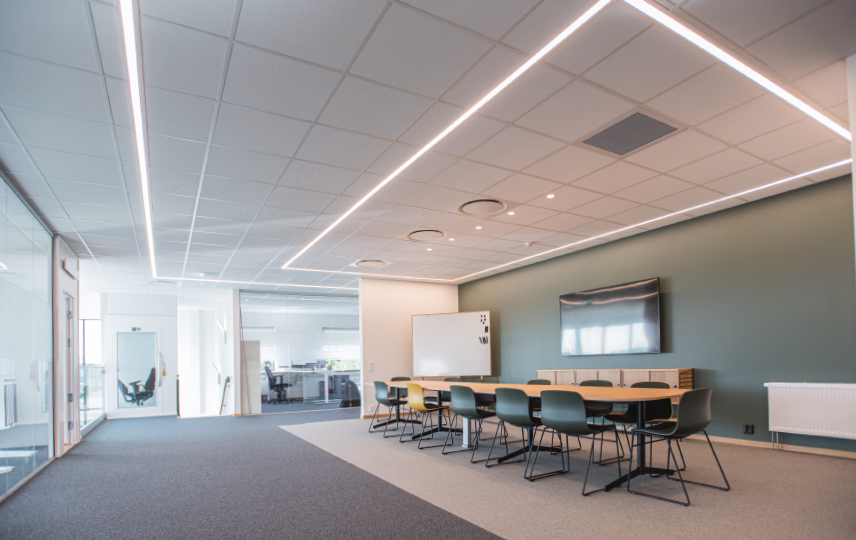

Lempäälä House is a modern service centre in the Finnish town of Lempäälä, with an area of 20,000 m2. The centre brings together under three roofs many different services offered by the municipality and private companies.
