Lineal Suspended

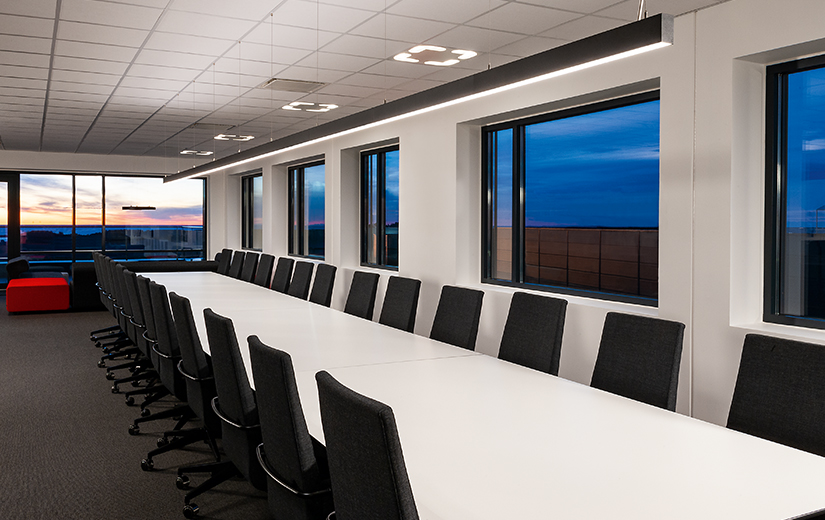

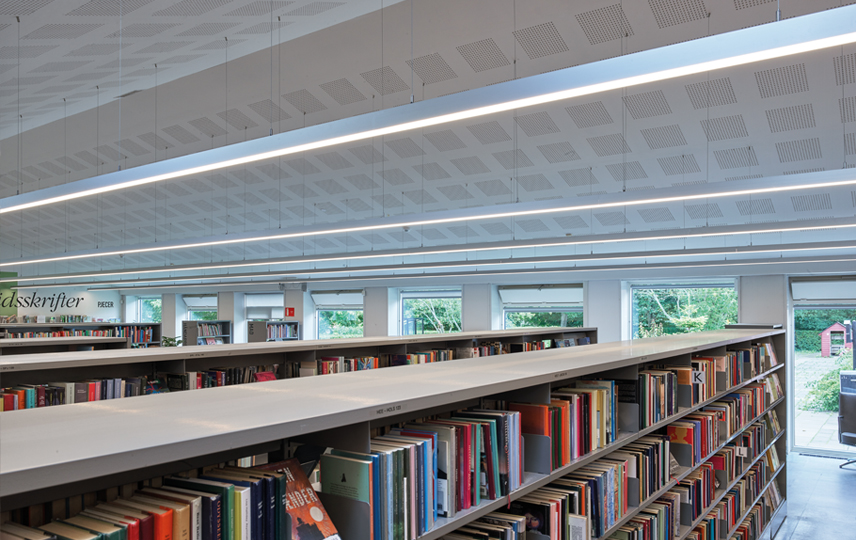

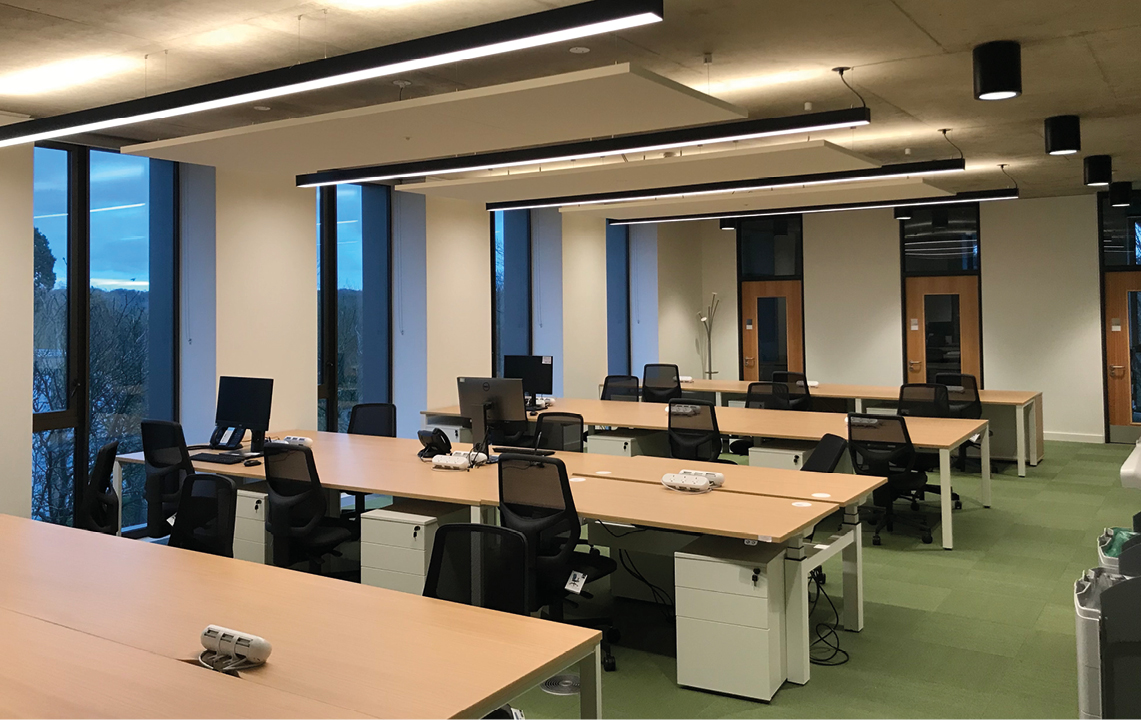

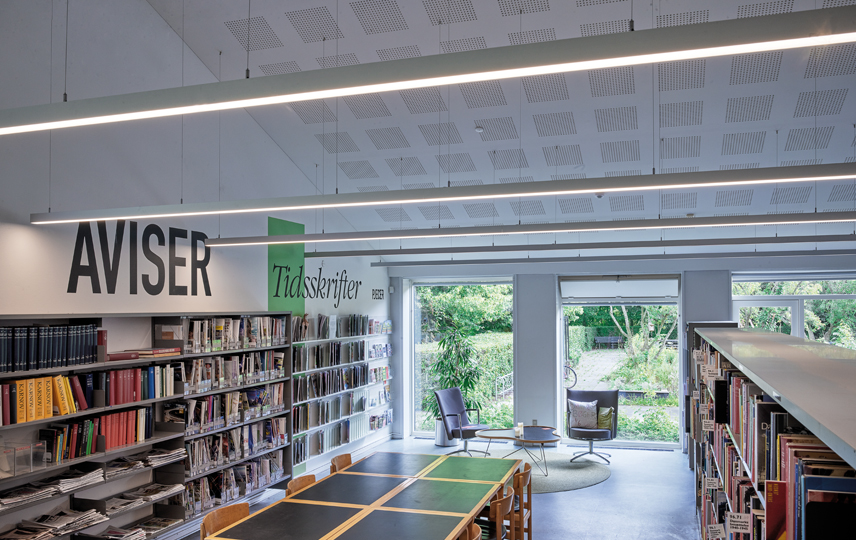

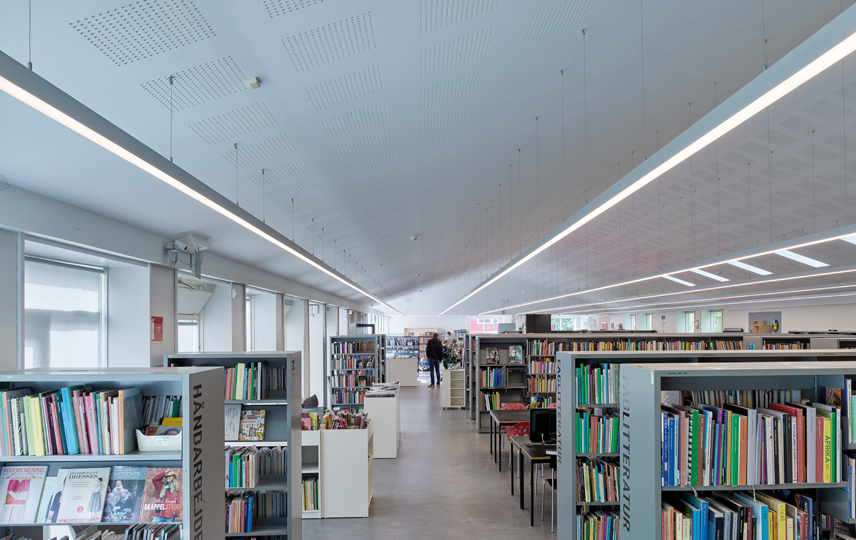

Lineal Suspended is a modular system solution for suspended installation. Lineal provides an efficient and uniform lighting experience, and is supplied with both upward and downward lighting. The range comes in the standard colours black and white. The opalprism front on the roll ensures seamless light without joints. SG also delivers customised solutions beyond the standard product range.

For each continuous line, you need one or more straight lines and/or corners, a starter kit and a front foil.

Article list

Download product sheet

Lineal Suspended

Indoor Suspended, Surface SDCM: 3 Class I IK08 IP20 Ra>80 L80/B10> 100,000

Filters

Color

Module

Colour temperature

System wattage

Lumen

Control gear

Filters

						Others	Tools
8246094623	1120	3000K	29W	3300lm	DALI-2	114 lm/W, L1121 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094607	840	3000K	21W	2360lm	DALI-2 / Push Dim	112 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094649	1400	3000K	37W	4280lm	DALI-2 / Push Dim	116 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094720	Corner	3000K	17W	1740lm	DALI-2 / Push Dim	102 lm/W, L642 x W42 x H70 x D571, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094665	840	3000K	21W	2520lm	DALI-2 / Push Dim	120 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094681	1120	3000K	29W	3590lm	DALI-2 / Push Dim	124 lm/W, L1121 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094704	1400	3000K	37W	4640lm	DALI-2 / Push Dim	125 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094746	Corner	3000K	17W	1870lm	DALI-2 / Push Dim	110 lm/W, L642 x W42 x H70 x D571, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094859	1400	4000K	37W	4500lm	DALI Emergency 3H	122 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094610	840	4000K	21W	2480lm	DALI-2 / Push Dim	118 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094636	1120	4000K	29W	3470lm	DALI-2 / Push Dim	120 lm/W, L1121 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094652	1400	4000K	37W	4500lm	DALI-2 / Push Dim	122 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094733	Corner	4000K	17W	1830lm	DALI-2 / Push Dim	108 lm/W, L642 x W42 x H70 x D571, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094856	1400	4000K	37W	4960lm	DALI Emergency 3H	134 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094678	840	4000K	21W	2690lm	DALI-2 / Push Dim	128 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094694	1120	4000K	29W	3830lm	DALI-2 / Push Dim	132 lm/W, L1121 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094717	1400	4000K	37W	4960lm	DALI-2 / Push Dim	134 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094759	Corner	4000K	17W	1970lm	DALI-2 / Push Dim	116 lm/W, L642 x W42 x H70 x D571, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095965	1120				DALI-2 / Push Dim	L1121 x W42 x H70, Blind profile, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095952	1120				DALI-2 / Push Dim	L1121 x W42 x H70, Blind profile, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

						Others	Tools
8246094623	1120	3000K	29W	3300lm	DALI-2	114 lm/W, L1121 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094607	840	3000K	21W	2360lm	DALI-2 / Push Dim	112 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094649	1400	3000K	37W	4280lm	DALI-2 / Push Dim	116 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094720	Corner	3000K	17W	1740lm	DALI-2 / Push Dim	102 lm/W, L642 x W42 x H70 x D571, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094665	840	3000K	21W	2520lm	DALI-2 / Push Dim	120 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094681	1120	3000K	29W	3590lm	DALI-2 / Push Dim	124 lm/W, L1121 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094704	1400	3000K	37W	4640lm	DALI-2 / Push Dim	125 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094746	Corner	3000K	17W	1870lm	DALI-2 / Push Dim	110 lm/W, L642 x W42 x H70 x D571, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094859	1400	4000K	37W	4500lm	DALI Emergency 3H	122 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094610	840	4000K	21W	2480lm	DALI-2 / Push Dim	118 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094636	1120	4000K	29W	3470lm	DALI-2 / Push Dim	120 lm/W, L1121 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094652	1400	4000K	37W	4500lm	DALI-2 / Push Dim	122 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094733	Corner	4000K	17W	1830lm	DALI-2 / Push Dim	108 lm/W, L642 x W42 x H70 x D571, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094856	1400	4000K	37W	4960lm	DALI Emergency 3H	134 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094678	840	4000K	21W	2690lm	DALI-2 / Push Dim	128 lm/W, L841 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094694	1120	4000K	29W	3830lm	DALI-2 / Push Dim	132 lm/W, L1121 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094717	1400	4000K	37W	4960lm	DALI-2 / Push Dim	134 lm/W, L1401 x W42 x H70, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct/Indirect 50/50%	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094759	Corner	4000K	17W	1970lm	DALI-2 / Push Dim	116 lm/W, L642 x W42 x H70 x D571, 5-pole Winsta mini with 5x2,5mm2 through wiring, 1x2m wire kit w/ceiling bracket, Direct	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095965	1120				DALI-2 / Push Dim	L1121 x W42 x H70, Blind profile, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246095952	1120				DALI-2 / Push Dim	L1121 x W42 x H70, Blind profile, 5-pole Winsta mini with 5x2,5mm2 through wiring	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
212198	Black T-carrier ceiling bracket	L30 x W20 x H5	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000346	Lineal Wall Start kit Black	L265 x W265 x H70	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8241000348	Lineal Wall Extension kit Black	L115 x W93 x H64	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000354	Lineal T-ceiling Start kit Black	L285 x W240 x H28	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8241000356	Lineal T-ceiling Extension kit Black	L120 x W94 x H65	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044942	Lineal suspended Start kit Black	L140 x W140 x H55	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8249045080	Lineal 2240 Black Blind profile Front	L2240 x W38 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212255	T-profil White Suspension Rail 600mm	L596 x W35 x H17	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000344	Lineal Wall Start kit White	L265 x W265 x H70	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8241000347	Lineal Wall Extension kit White	L115 x W93 x H64	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8241000353	Lineal T-ceiling Start kit White	L285 x W240 x H28	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8241000355	Lineal T-ceiling Extension kit White	L120 x W94 x H65	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044955	Lineal suspended Start kit White	L140 x W140 x H55	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8249045077	Lineal 2240 White Blind profile Front	L2240 x W38 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8249044968	Lineal 2800 Opalprism Diffuser	L2800 x W38 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8249044971	Lineal 5600 Opalprism Diffuser	L5600 x W38 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8249044984	Lineal 8400 Opalprism Diffuser	L8400 x W38 x H4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8249045116	Lineal Wire kit 1 x 2m		Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
