Lineal Cubic Surface-Suspended

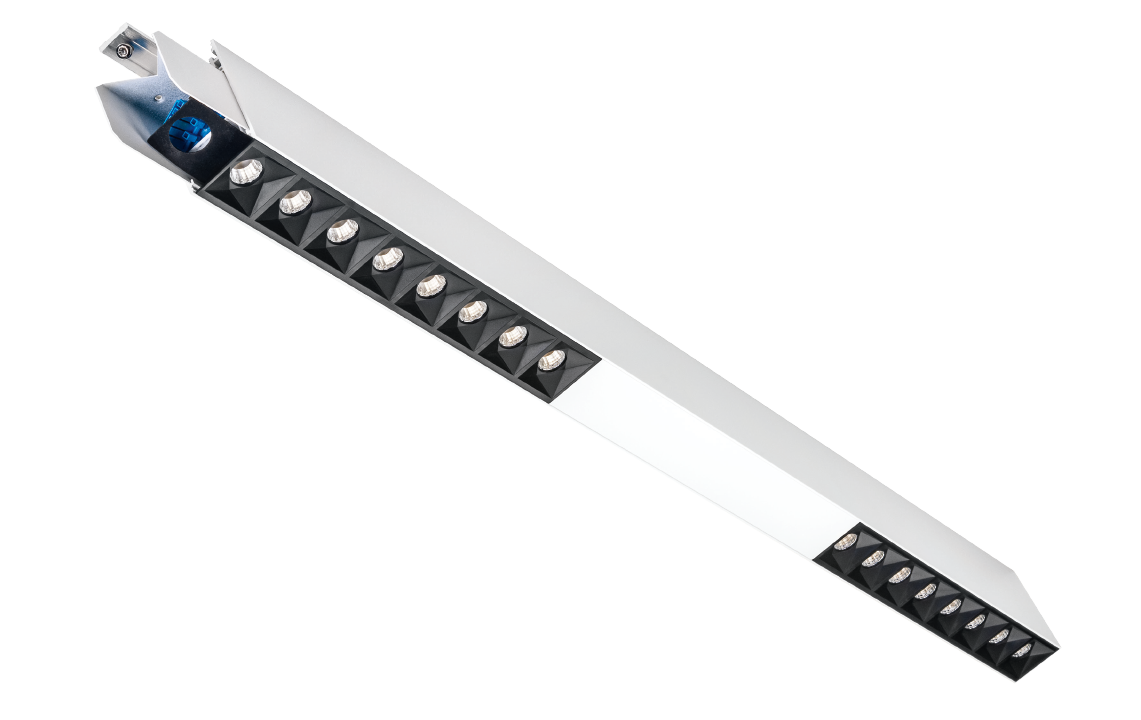

Lineal Cubic 840 White 2300lm 4000K Ra>80 DALI-2 / Push Dim

Article code
8246095787
EAN
5703821180290
Back to articlelist

Overview

Efficacy
128 lm/W
Lumen
2300lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Surface, Indoor
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246095787 Revit file - Generic Lineal surface cubic 840 - generic Revit file - Ceiling Based Lineal Surface Cubic 840 - ceiling based

See more

Eulumdat file (ldt) 5703821180290_Lineal Cubic 840 White 2300lm 4000K Ra80 DALI-2 Push Dim Dialux file (uld) 5703821180290_Lineal Cubic 840 White 2300lm 4000K Ra80 DALI-2 Push Dim Relux file (rolf) 5703821180290_Lineal_Cubic_840_White_2300lm_4000K_Ra_80_DALI-2___Push_Dim EPD NEPD-12237-12290_Lineal-Cubic-840 Mounting instruction Lineal Cubic_User Manual CE Declaration Lineal Surface_Suspended Cubic

How to specify

Text copied to clipboard

Lineal Cubic 840 White 2300lm 4000K Ra>80 DALI-2 / Push Dim, Article code: 8246095787, EAN: 5703821180290, IP20, Electrical: System wattage: 18W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Leakage current (mA): 0.01, Light technic: Luminous flux: 2300lm, Efficacy: 128 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Cubic Optic Black, UGR: UGR<19, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Surface, Indoor, Module: 840, Connection: 5-pole Winsta mini with 5x2,5mm2 through wiring, Dimensions: Length (mm) L: 841, Width (mm) W: 42, Height (mm) H: 70, Weight (kg) gross/net: 1.9 / 1.7, Packaging: Packaging dimensions (mm): 970 x 71 x 44

Electrical

System wattage
18W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85
Leakage current (mA)
0.01

Light technic

Luminous flux
2300lm
Efficacy
128 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>100,000

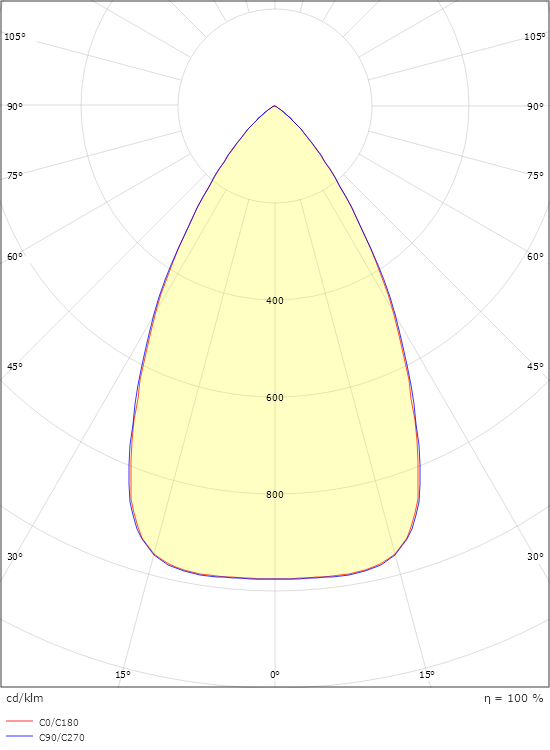

Light distribution
Direct
Optic
Cubic Optic Black

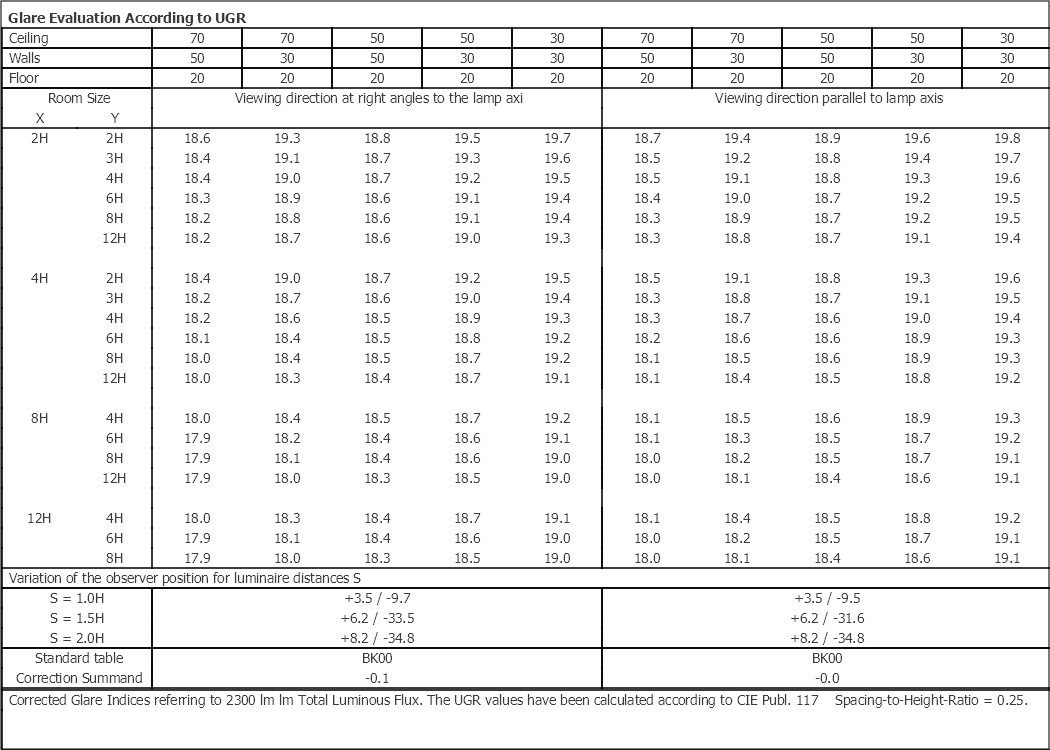

UGR
UGR<19

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Surface, Indoor
Module
840
Connection
5-pole Winsta mini with 5x2,5mm2 through wiring

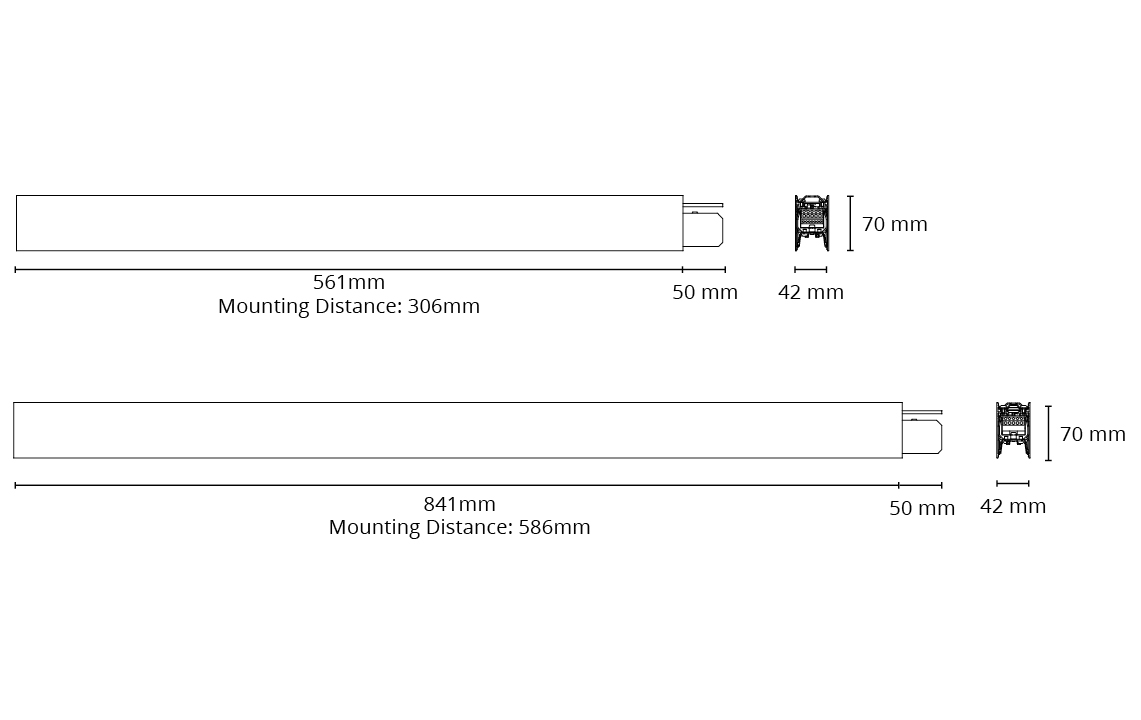

Dimensions

Length (mm) L
841
Width (mm) W
42
Height (mm) H
70
Weight (kg) gross/net
1.9 / 1.7

Packaging

Packaging dimensions (mm)
970 x 71 x 44
