Lineal Surface

Lineal surface 1400 Black 2270lm 4000K Ra>80 DALI-2 / Push Dim

Article code
8246095842
EAN
5703821180368
Back to articlelist

Overview

Efficacy
108 lm/W
Lumen
2270lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • flickerfree
  • ik08
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246095842 Revit file - Generic Lineal Surface 1400 - generic Revit file - Ceiling Based Lineal Surface 1400 - ceiling based

See more

Eulumdat file (ldt) 5703821180368_Lineal Surface 1400 Black 2270lm 4000K Ra80 DALI Dialux file (uld) 5703821180368_Lineal Surface 1400 Black 2270lm 4000K Ra80 DALI Relux file (rolf) 5703821180368_Lineal_surface_1400_Black_2270lm_4000K_Ra_80_DALI EPD NEPD-4805-4067_Lineal-Surface-1400 Mounting instruction Lineal Surface_User Manual CE Declaration Lineal Surface

How to specify

Text copied to clipboard

Lineal surface 1400 Black 2270lm 4000K Ra>80 DALI-2 / Push Dim, Article code: 8246095842, EAN: 5703821180368, IP20, IK08, Electrical: System wattage: 21W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 25, C16: 41, Leakage current (mA): 0.29, Light technic: Type of light source: LED, Luminous flux: 2270lm, Efficacy: 108 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Lifetime: L93/>50,000, Light distribution: Direct, UGR: UGR<26, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Black, Mounting/Connection: Mounting: Surface, Indoor, Module: 1400, Connection: 5-pole Winsta mini with 5x2,5mm2 through wiring, Dimensions: Length (mm) L: 1401, Width (mm) W: 42, Height (mm) H: 70, Weight (kg) gross/net: 3.5 / 3.3, Packaging: Packaging dimensions (mm): 1560 x 50 x 80

Electrical

System wattage
21W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 15, B16: 24, C10: 25, C16: 41
Leakage current (mA)
0.29

Light technic

Type of light source
LED
Luminous flux
2270lm
Efficacy
108 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Lifetime
L93/>50,000

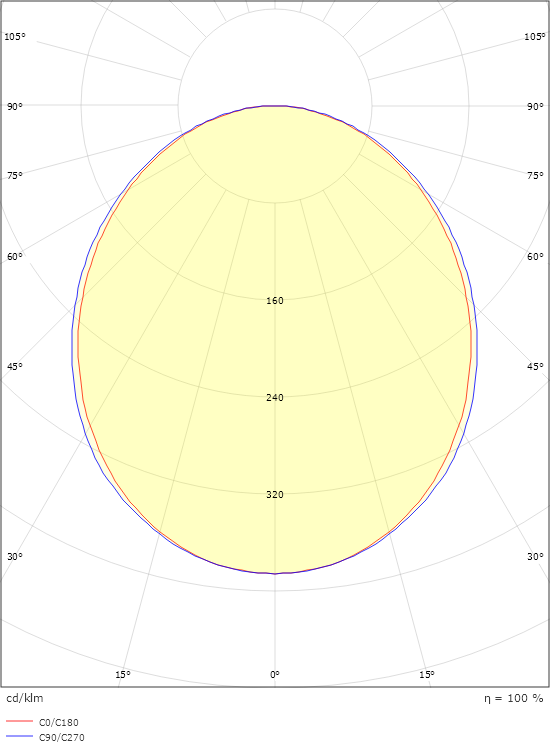

Light distribution
Direct
UGR
UGR<26
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Black

Mounting/Connection

Mounting
Surface, Indoor
Module
1400
Connection
5-pole Winsta mini with 5x2,5mm2 through wiring

Dimensions

Length (mm) L
1401
Width (mm) W
42
Height (mm) H
70
Weight (kg) gross/net
3.5 / 3.3

Packaging

Packaging dimensions (mm)
1560 x 50 x 80
