Tovdal

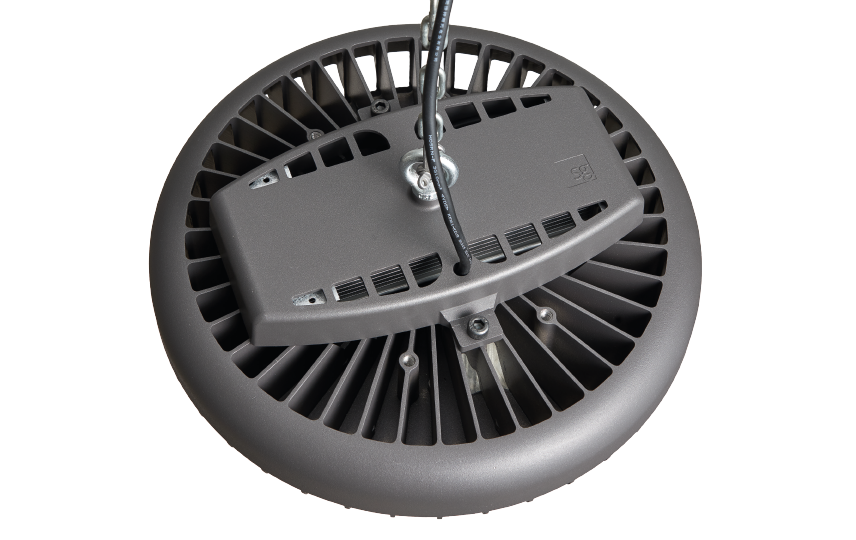

Tovdal Graphite 26650lm 4000K Ra>80 On/Off

Article code
607003
EAN
7021986070033
Back to articlelist

Overview

Efficacy
135 lm/W
Lumen
26650lm
IP Class
IP65
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • d
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 607003 Mounting instruction Tovdal_User Manual EPD NEPD-6118-5384_Tovdal-27000lm-90D-4000K CE Declaration Tovdal Relux file (rolf) 7021986070033_Tovdal_Graphite_25880lm_4000K_Ra80_with_Prism_Reflector Relux file (rolf) 7021986070033_Tovdal_Graphite_26650lm_4000K_Ra_80_On_Off Eulumdat file (ldt) 7021986070033_Tovdal Graphite 25880lm 4000K Ra80 with Prism Reflector Eulumdat file (ldt) 7021986070033_Tovdal Graphite 26650lm 4000K Ra80 OnOff Dialux file (uld) 7021986070033_Tovdal Graphite 25880lm 4000K Ra80 with Prism Reflector Dialux file (uld) 7021986070033_Tovdal Graphite 26650lm 4000K Ra80 OnOff Revit file - Generic Tovdal - generic Revit file - Ceiling Based Tovdal - ceiling based

How to specify

Text copied to clipboard

Tovdal Graphite 26650lm 4000K Ra>80 On/Off, Article code: 607003, EAN: 7021986070033, IP65, IK10, Electrical: System wattage: 197W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 3, B16: 5, C10: 5, C16: 8, Light technic: Type of light source: LED, Luminous flux: 26650lm, Efficacy: 135 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Lifetime: L92>50,000, Minimum ambient temperature: -40°C, Maximum ambient temperature: 40°C, Lifetime at max ambient temperature: L80/B20>50,000, Light distribution: Direct, Optic: Lens, Beam angle: 86°, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Surge protection: Integrated (min. 6 kV), Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Suspended, Indoor, Cable: Cable 3x1mm² 0,3m + 1,5m, H07RN-F, Connection: Quick connector, Dimensions: Height (mm) H: 132, Diameter (mm) D: 350, Weight (kg) gross/net: 5.674 / 5.2, Packaging: Packaging dimensions (mm): 375 x 360 x 100

Electrical

System wattage
197W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 3, B16: 5, C10: 5, C16: 8

Light technic

Type of light source
LED
Luminous flux
26650lm
Efficacy
135 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Lifetime
L92>50,000
Minimum ambient temperature
-40°C
Maximum ambient temperature
40°C
Lifetime at max ambient temperature
L80/B20>50,000

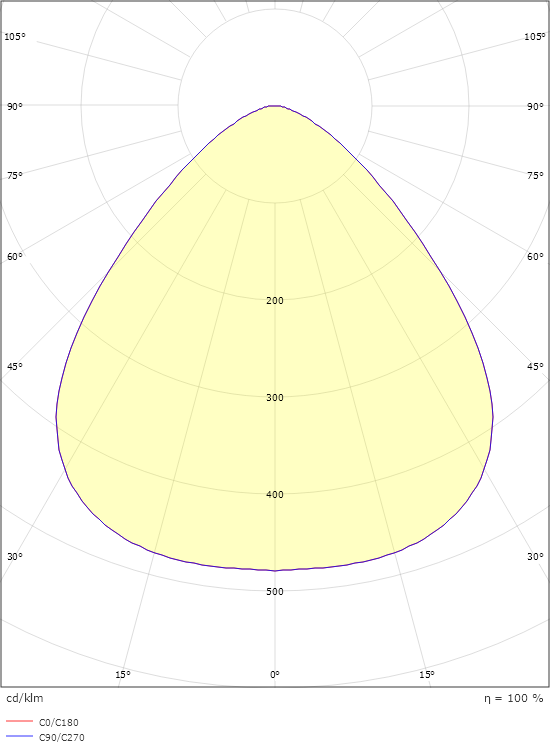

Light distribution
Direct
Optic
Lens
Beam angle
86°

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Surge protection
Integrated (min. 6 kV)

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Suspended, Indoor
Cable
Cable 3x1mm² 0,3m + 1,5m, H07RN-F
Connection
Quick connector

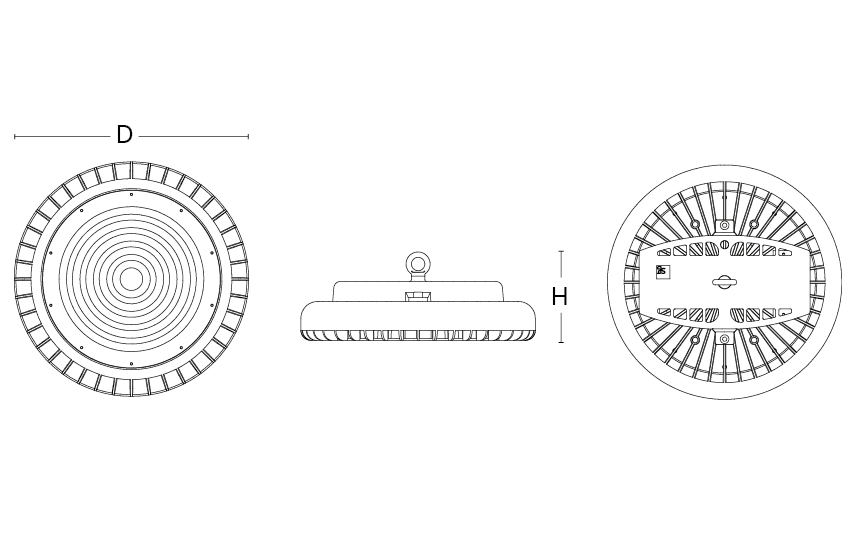

Dimensions

Height (mm) H
132
Diameter (mm) D
350
Weight (kg) gross/net
5.674 / 5.2

Packaging

Packaging dimensions (mm)
375 x 360 x 100
