Hurdal Maxi Connect

Hurdal Maxi 1200 White 5610lm 3000K Ra>80 Connect

SG code
113143
EAN
7021981131432
Back to articlelist

Overview

Efficacy
152 lm/W
Lumen
5610lm
IP Class
IP44
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Indoor
    5 years Warranty
  • indoor
  • d
  • el
  • flickerfree
  • ip44
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 113143 Mounting instruction 251029_Hurdal Maxi Connect_User Manual CE Declaration CE-UKCA260205D_Hurdal Maxi Connect Relux file (rolf) 7021981131432_Hurdal_Maxi_1200_White_5610lm_3000K_Ra_80_Connect Eulumdat file (ldt) 7021981131432_Hurdal Maxi 1200 White 5610lm 3000K Ra80 Connect Dialux file (uld) 7021981131432_Hurdal Maxi 1200 White 5610lm 3000K Ra80 Connect

How to specify

Text copied to clipboard

Hurdal Maxi 1200 White 5610lm 3000K Ra>80 Connect, Article code: 113143, EAN: 7021981131432, IP44, Electrical: System wattage: 37W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 24, C16: 40, Light technic: Type of light source: LED, Luminous flux: 5610lm, Efficacy: 152 lm/W, Constant lumen output option: Yes, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opal, UGR: UGR<25, Visible flicker (PstLM): 0,00, Stroboscopic flicker (SVM): 0,01, Photobiological safety: RG 0, Control/Dimming: Type: Connect, Driver: 1050mA, Protection: Luminaire class: Class I, IP Class: IP44, Energy and approvals: Contains light source of energy class: C, Materials and finish: Housing: Steel, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Indoor, Module: 1200, Connection: 3-pole screwless terminal block with 3x2,5mm² through wiring, Dimensions: Length (mm) L: 1220, Width (mm) W: 151, Height (mm) H: 75, Weight (kg) gross/net: 3.5 / 3, Packaging: Packaging dimensions (mm): 1243 x 155 x 88

Electrical

System wattage
37W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 15, B16: 24, C10: 24, C16: 40

Light technic

Type of light source
LED
Luminous flux
5610lm
Efficacy
152 lm/W
Constant lumen output option
Yes
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

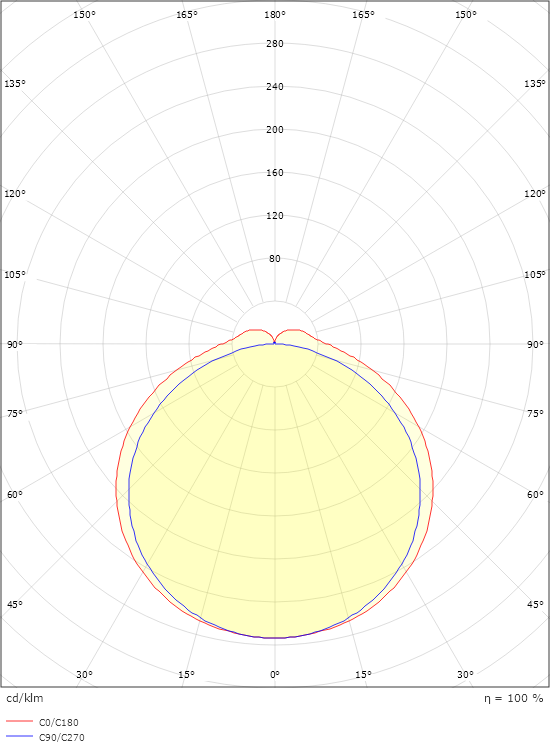

Light distribution
Direct
Optic
Opal
UGR
UGR<25
Visible flicker (PstLM)
0,00
Stroboscopic flicker (SVM)
0,01
Photobiological safety
RG 0

Control/Dimming

Type
Connect
Driver
1050mA

Protection

Luminaire class
Class I
IP Class
IP44

Energy and approvals

Contains light source of energy class
C

Materials and finish

Housing
Steel
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Indoor
Module
1200
Connection
3-pole screwless terminal block with 3x2,5mm² through wiring

Dimensions

Length (mm) L
1220
Width (mm) W
151
Height (mm) H
75
Weight (kg) gross/net
3.5 / 3

Packaging

Packaging dimensions (mm)
1243 x 155 x 88
