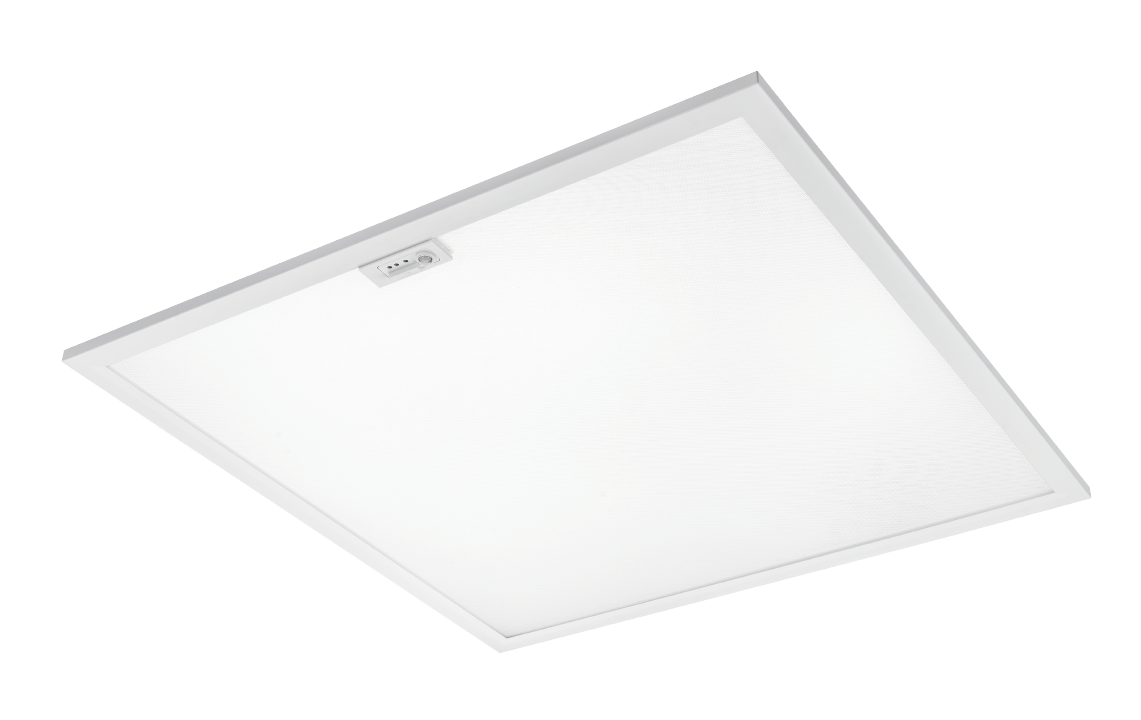

Sense Pro Connect 600x600

Version of Sense Pro with integrated wireless SG Connect sensor.

The sensor is discreetly positioned at the edge, switches on when it registers movement and switches off after a pre-selected period of time to save energy.

The sensor includes an integrated daylight sensor. If this function is activated, the sensor will constantly work to provide the desired amount of light in its work area.

The lighting control is easy tp configure using the SG Connect Commissioning App, and the luminaire can be used individually or in a larger system, which can easily be enlarged or reconfigured as needed.

Available in multiple lumen variants, depending on the driver kit selected as an accessory.

Article list

Sense Pro Connect 600x600

Indoor Direct Recessed SDCM: 3 Class III, Class II IK10 IP40/IP20, IP20 Ra>80, Ra>90 Beam angle: 110° L80/B20> 100,000, 100,000

Filters

Colour temperature

System wattage

Control gear

					Others	Tools
212684	600x600	3000K		Connect	L597 x W597 x H11, Quick connector	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212793	600x600	3000K		Connect	L597 x W597 x H11, Quick connector	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212685	600x600	4000K		Connect	L597 x W597 x H11, Quick connector	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212724	600x600	4000K		Connect	L597 x W597 x H11, Quick connector	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820511			25W	Connect/ Linect	L201 x W75 x H33, Sensor, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
820512			32W	Connect/ Linect	L201 x W75 x H33, Sensor, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
820513			38W	Connect/ Linect	L201 x W75 x H33, Sensor, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Drivers

				Others	Tools
	820511	25W	Connect/ Linect	L201 x W75 x H33, Sensor, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
	820512	32W	Connect/ Linect	L201 x W75 x H33, Sensor, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

					Others	Tools
212684	600x600	3000K		Connect	L597 x W597 x H11, Quick connector	Select driver
212793	600x600	3000K		Connect	L597 x W597 x H11, Quick connector	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212685	600x600	4000K		Connect	L597 x W597 x H11, Quick connector	Select driver
212724	600x600	4000K		Connect	L597 x W597 x H11, Quick connector	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820511			25W	Connect/ Linect	L201 x W75 x H33, Sensor, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
820512			32W	Connect/ Linect	L201 x W75 x H33, Sensor, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
820513			38W	Connect/ Linect	L201 x W75 x H33, Sensor, 3 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
212684+820512	600x600	3000K	32W	4340lm	Connect	136 lm/W, L597 x W597 x H11, Quick connector	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212685+820511	600x600	4000K	25W	3670lm	Connect	147 lm/W, L597 x W597 x H11, Quick connector	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212685+820512	600x600	4000K	32W	4610lm	Connect	144 lm/W, L597 x W597 x H11, Quick connector	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
212256	Sense 600x600 White Surface frame Aluminium	L604 x W604 x H48	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212688	Sense Decor Sky White 600x600 Aluminium	L597 x W597 x H79	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249045006	Sense 600x600 White Plaster board/Troldtekt Recessed frame	L640 x W640 x H40	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212170	Sense 2m Wire kit	L2000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212176	Sense 600x600 Concealed grid Bracket	L44 x W65 x H18	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212177	Sense 600x600 Asymmetric Bracket	L44 x W5 x H2.5	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094364	Emergencybox On-Off/Trailing edge / EM Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
