Connect Bridge Kit

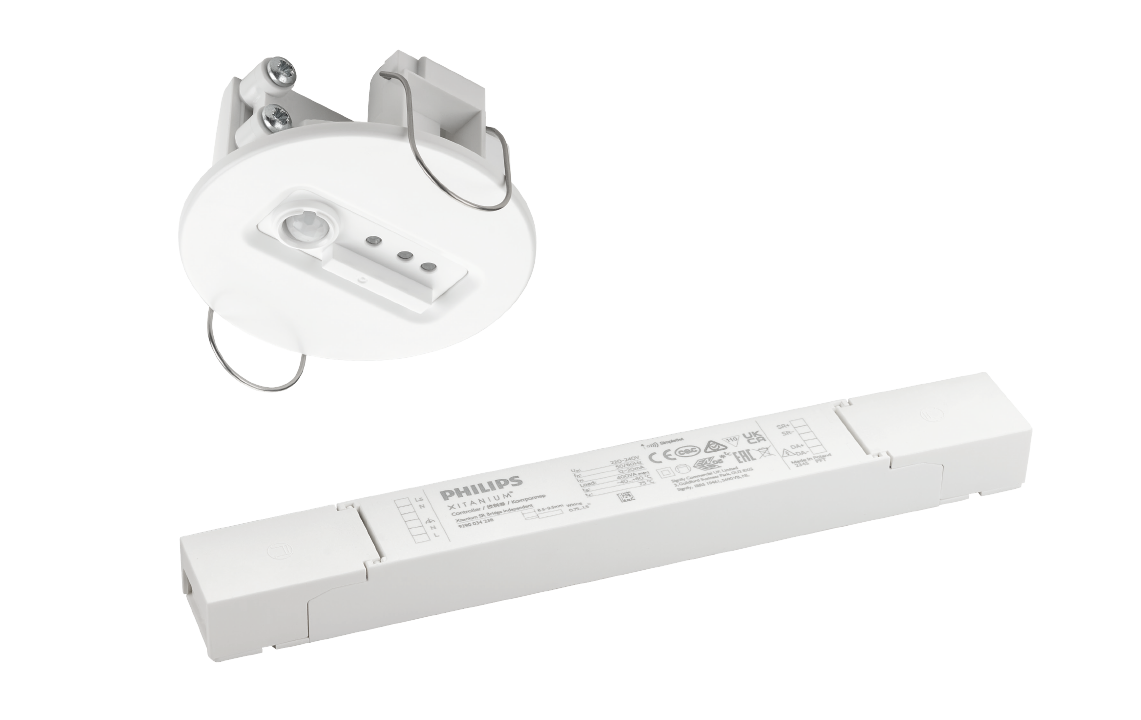

Connect Bridge Kit White Recessed 0.50W

Article code
820535
EAN
7021988205358
Back to articlelist

Overview

Wattage
0.50W
IP Class
IP20
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 820535 Mounting instruction Connect Bridge_User Manual

How to specify

Text copied to clipboard

Connect Bridge Kit White Recessed 0.50W, Article code: 820535, EAN: 7021988205358, IP20, Electrical: Wattage: 0.50W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Control/Dimming: Type: Connect, Protection: Luminaire class: Class II, IP Class: IP20, Materials and finish: Housing: Plastic, Colour: White, Mounting/Connection: Mounting: Recessed, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 75, Width (mm) W: 75, Height (mm) H: 34, Cut-out (mm): 64, Weight (kg) gross/net: 0.236 / 0.188, Packaging: Packaging dimensions (mm): 320 x 93 x 50

Electrical

Wattage
0.50W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Control/Dimming

Type
Connect

Protection

Luminaire class
Class II
IP Class
IP20

Materials and finish

Housing
Plastic
Colour
White

Mounting/Connection

Mounting
Recessed, Indoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
75
Width (mm) W
75
Height (mm) H
34
Cut-out (mm)
64
Weight (kg) gross/net
0.236 / 0.188

Packaging

Packaging dimensions (mm)
320 x 93 x 50
