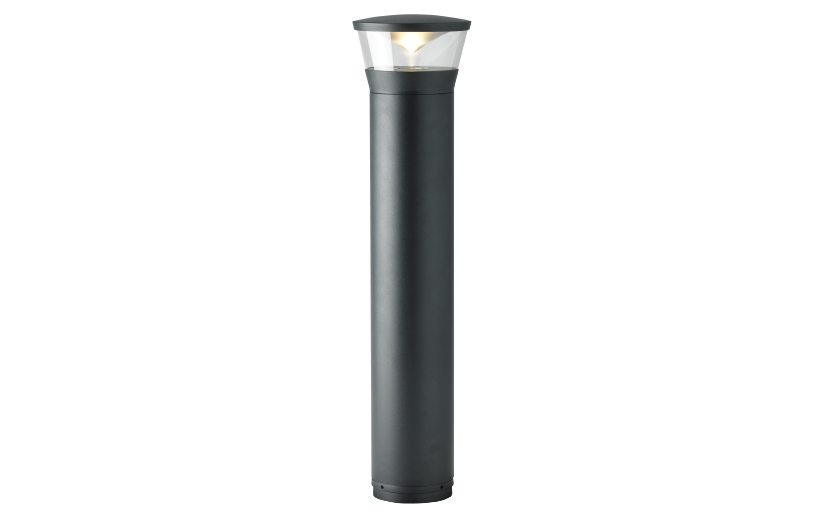

CircLED Bollard

CircLED Bollard Black Soft 770lm 4000K Ra 98 On/Off

Article code
8246093857
EAN
5703821176491
Back to articlelist

Overview

Efficacy
48 lm/W
Lumen
770lm
IP Class
IP65
Colour temperature
4000K
Colour rendering (Ra)
Ra 98
Lifetime
100,000 L80/B10>
Mounting
Onto surfaces or ground anchor, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • dipswitch
  • ik10
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 8246093857 Eulumdat file (ldt) 5703821176491_CircLED Bollard Black Soft 770lm 4000K Ra 98 OnOff Dialux file (uld) 5703821176491_CircLED Bollard Black Soft 770lm 4000K Ra 98 OnOff

See more

Relux file (rolf) 5703821176491_CircLED_Bollard_Black_Soft_770lm_4000K_Ra_98_On_Off Revit file - Generic CircLED Bollard - Generic Revit file - Face Based CircLED Bollard Mounting instruction CircLED Bollard_User Manual CE Declaration CircLED Bollard

How to specify

Text copied to clipboard

CircLED Bollard Black Soft 770lm 4000K Ra 98 On/Off, Article code: 8246093857, EAN: 5703821176491, IP65, IK10, Electrical: System wattage: 16W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 770lm, Efficacy: 48 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 2, Lifetime: L80/B10>100,000, Light distribution: Indirect, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP65, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: B, Materials and finish: Housing: Die-cast aluminium, Colour: Black (20% gloss), Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Onto surfaces or ground anchor, Outdoor, Dimensions: Height (mm) H: 900, Diameter (mm) D: 220, Weight (kg) gross/net: 10.4 / 10, Packaging: Packaging dimensions (mm): 965 x 265 x 282

Electrical

System wattage
16W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
770lm
Efficacy
48 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 2
Lifetime
L80/B10>100,000

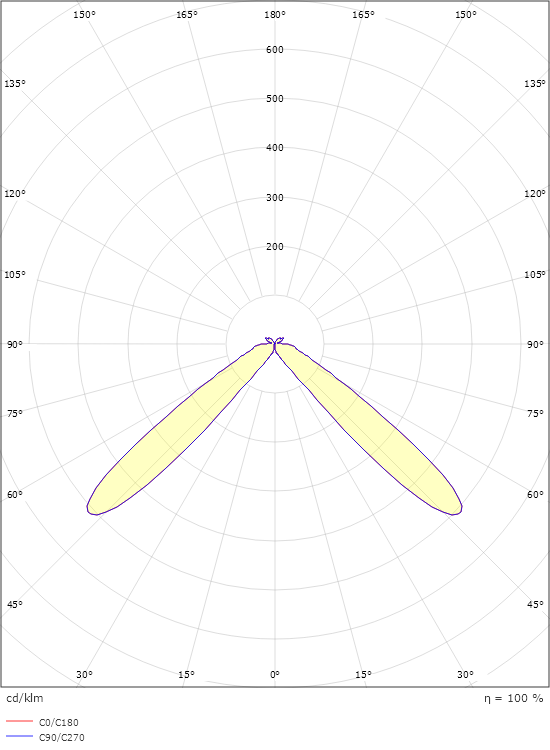

Light distribution
Indirect

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP65
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
B

Materials and finish

Housing
Die-cast aluminium
Colour
Black (20% gloss)
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Onto surfaces or ground anchor, Outdoor

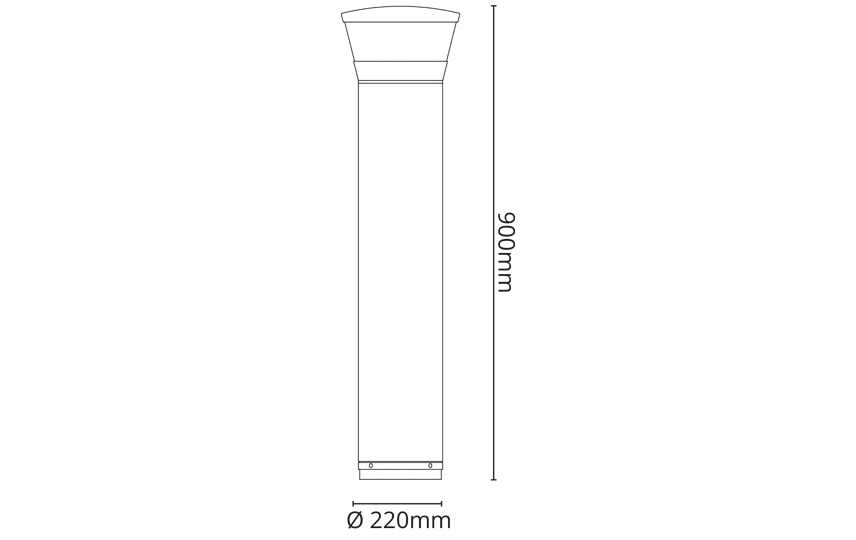

Dimensions

Height (mm) H
900
Diameter (mm) D
220
Weight (kg) gross/net
10.4 / 10

Packaging

Packaging dimensions (mm)
965 x 265 x 282
