CircLED Multi

CircLED Multi Top Grey Lens 2, Class II 3120lm 4000K Ra>70 Lumistep LS8

Article code
8246090876
EAN
5703821172936
Back to articlelist

Overview

Efficacy
136 lm/W
Lumen
3120lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>70
Lifetime
100,000 L80/B10>
Mounting
Post - top (Ø60mm), Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik09
  • ip66
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 8246090876 Mounting instruction CircLED Multi Mounting Instruction CE Declaration CircLED Multi Relux file (rolf) 5703821172936_CircLED_Multi_Grey_Lens_II,_Class_II_Top_3120lm_4000K_Ra_70_Lumistep_LS8 Eulumdat file (ldt) 5703821172936_CircLED Multi Grey Lens II, Class II Top 3120lm 4000K Ra70 Lumistep LS8 Dialux file (uld) 5703821172936_CircLED Multi Grey Lens II, Class II Top 3120lm 4000K Ra70 Lumistep LS8 Revit file - Generic CircLED Multi - Generic Revit file - Face Based CircLED Multi

How to specify

Text copied to clipboard

CircLED Multi Top Grey Lens 2, Class II 3120lm 4000K Ra>70 Lumistep LS8, Article code: 8246090876, EAN: 5703821172936, IP66, IK09, Electrical: System wattage: 23W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 10, B16: 17, C10: 16, C16: 27, Light technic: Type of light source: LED, Luminous flux: 3120lm, Efficacy: 136 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>70, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Light distribution: Multi Lens, Optic: Lens, ULOR (<1%): Yes / Yes, up to 17° tilt angle, Control/Dimming: Type: Lumistep LS8, Protection: Luminaire class: Class II, IK Class: IK09, IP Class: IP66, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Die-cast aluminium, Colour: Grey (structure 2150 sablé), Optics: Tempered glass, Mounting/Connection: Mounting: Post - top (Ø60mm), Outdoor, Module: Top, Cable: Cable 2x1mm² 6m, Wind projected area: 0,0415m² - Max 6,2 kg, Dimensions: Length (mm) L: 460, Width (mm) W: 390, Height (mm) H: 185, Weight (kg) gross/net: 8.2 / 8, Packaging: Packaging dimensions (mm): 525 x 395 x 210

Electrical

System wattage
23W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 10, B16: 17, C10: 16, C16: 27

Light technic

Type of light source
LED
Luminous flux
3120lm
Efficacy
136 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>70
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000

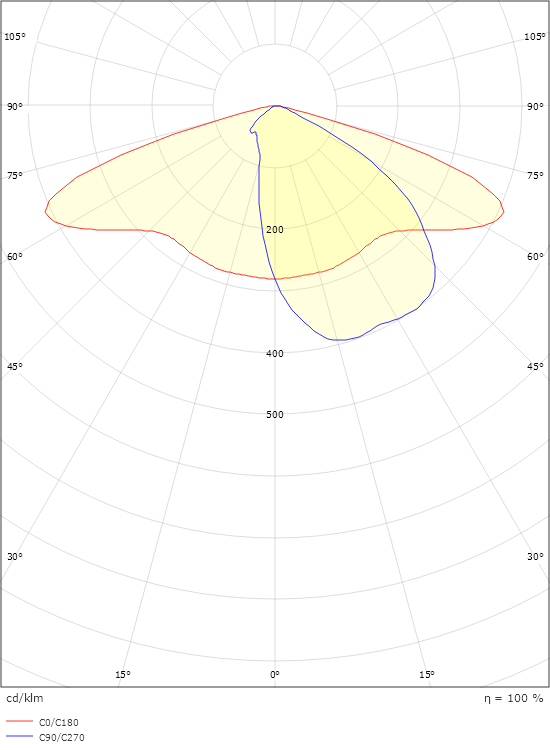

Light distribution
Multi Lens
Optic
Lens
ULOR (<1%)
Yes / Yes, up to 17° tilt angle

Control/Dimming

Type
Lumistep LS8

Protection

Luminaire class
Class II
IK Class
IK09
IP Class
IP66
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Die-cast aluminium
Colour
Grey (structure 2150 sablé)
Optics
Tempered glass

Mounting/Connection

Mounting
Post - top (Ø60mm), Outdoor
Module
Top
Cable
Cable 2x1mm² 6m
Wind projected area
0,0415m² - Max 6,2 kg

Dimensions

Length (mm) L
460
Width (mm) W
390
Height (mm) H
185
Weight (kg) gross/net
8.2 / 8

Packaging

Packaging dimensions (mm)
525 x 395 x 210
