Ray D

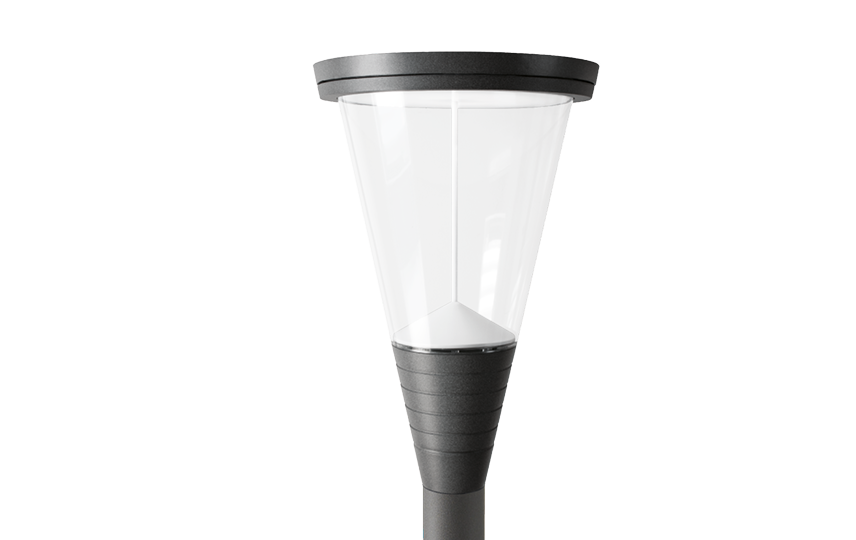

Design: Christian Hvidt. . Light for mounting on mast or wall lamp (460 mm or 680 mm in diameter) is IP65-rated. Luminaire body, wall bracket and top made of die-cast aluminium, reflector and truncated cone made of polycarbonate. Powder-coated dark grey luminaire body, wall bracket and top. Reflector, inside of cone and top in special reflector-white colour. Reflector and optics are particularly well suited to giving a direct, direct/indirect, indirect or direct/asymmetrical light distribution via a clear or opal truncated cone. Complete with connection for operation of LED light sources mounted to component rail with connector system and pre-mounted with five-metre connection cable. Lamp head prepared for mounting on 60 mm or 108 mm mast (76 mm on request). Electrical safety class I or II. Ø460.
Accessories
| Image | Article code | Description | Dimensions | Tools |
|---|---|---|---|---|
| Galvanized Pole 3m | L3000 | |||
| Galvanized Pole 4m | L4000 | |||
| Galvanized Conical Pole 3m | L3000 | |||
| Galvanized Conical Pole 4m | L4000 | |||
| Galvanized Pole 3m | L3000 | |||
| Galvanized Pole 4m | L4000 | |||
| Galvanized Ground anchor | ||||
| Galvanized Reducer part from Ø76 to Ø60 | L230 x W98 x H230 | |||
| Grey Design pole 3m | L3000 | |||
| Grey Design pole 4m | L4000 | |||
| Grey Conical Pole 4m | L4000 | |||
| Ray 680 Design Cone Grey | L100 | |||
| Mounting unit | ||||
| Ray 680 D/I LED Diffuser foil |
This article is produced by order, with an expected delivery time of 3-4 weeks
