Fenes
Fenes Lens 2 4710lm 4000K Ra>70 On/Off
- Article code
- 212641
- EAN
- 7021982126413
Overview
- Wattage
- 35W
- Efficacy
- 135 lm/W
- Lumen
- 4710lm
- IP Class
- IP66
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>70
- Lifetime
- 100,000 L95/B50>
- Mounting
- Pole - Side Top (Ø42-48/Ø60), Outdoor
Electrical
- Wattage
- 35W
- System wattage
- 35W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
Light technic
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 4710lm
- Efficacy
- 135 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>70
- MacAdams factor
- SDCM: 3
- Lifetime
- L95/B50>100,000
- Lifetime
- L98>50,000

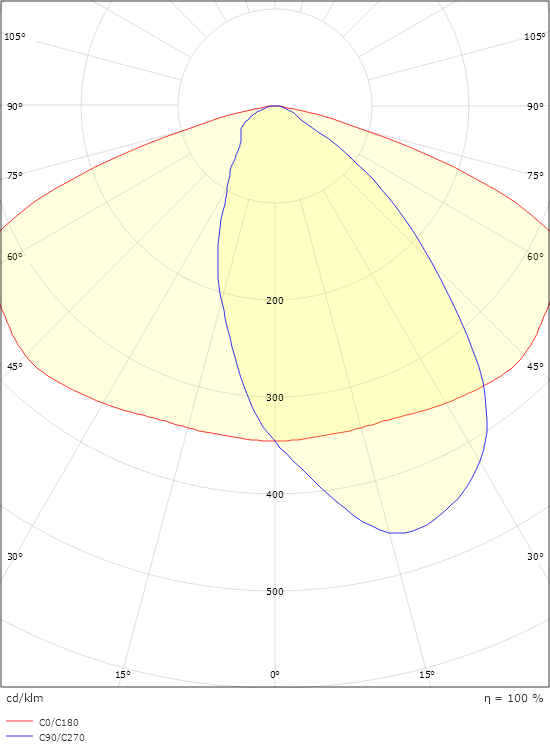

- Light distribution
- Direct
- Optic
- PMMA, Polymethylmethacrylat
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class II
- IK Class
- IK08
- IP Class
- IP66
Energy and approvals
- Contains light source of energy class
- C
Materials and finish
- Housing
- Aluminium
- Colour
- Grey RAL 7042
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Pole - Side Top (Ø42-48/Ø60), Outdoor
- Module
- Lens 2
- Cable
- Cable 2x1.0mm² 8m, H05RN-F
- Wind projected area
- S=0,0175m² T=0,048m²
Dimensions
- Length (mm) L
- 370
- Width (mm) W
- 170
- Height (mm) H
- 145
- Weight (kg) gross/net
- 4.345 / 3.975
Packaging
- Packaging dimensions (mm)
- 480 x 180 x 95
