Place

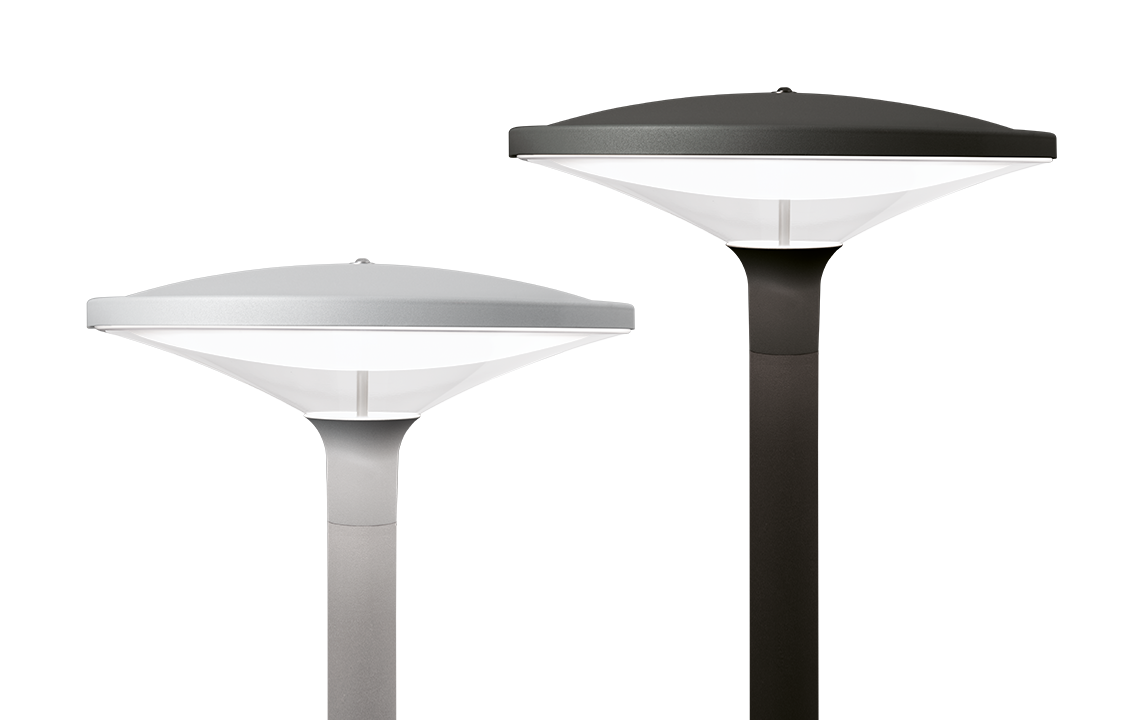

Design: Christian Hvidt. Mast or wall-mounted (600 mm diameter) IP66 LED luminaire. Base and top made of die-cast aluminium, inner diffuser made of PMMA opal and outer optics made of polycarbonate (PC). Grey or black base and top. Complete with LED driver for operation of LED light sources mounted to component rail with internal connector/lampholder and pre-mounted with five-metre connection cable. Prepared for mounting on 60 mm or designer mast. Safety class II.

Article list

Place

Outdoor Direct Post - top (Ø60mm) SDCM: 3 Class II IK10 IP66 Ra>80 L90/B10> 50,000

Filters

Color

Colour temperature

System wattage

Lumen

Control gear

					Others	Tools
8246090627	3000K	21W	2410lm	DYNADIM	115 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090630	3000K	21W	2410lm	On/Off	115 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246088215	3000K	21W	2410lm	DYNADIM	115 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090892	3000K	21W	2410lm	Lumistep LS8	115 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246087999	3000K	21W	2410lm	On/Off	115 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090614	4000K	28W	2510lm	DYNADIM	90 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090643	4000K	21W	2530lm	On/Off	120 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246088228	4000K	28W	2510lm	DYNADIM	90 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090902	4000K	21W	2530lm	Lumistep LS8	120 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246087407	4000K	21W	2530lm	On/Off	120 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

					Others	Tools
8246090627	3000K	21W	2410lm	DYNADIM	115 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090630	3000K	21W	2410lm	On/Off	115 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246088215	3000K	21W	2410lm	DYNADIM	115 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090892	3000K	21W	2410lm	Lumistep LS8	115 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246087999	3000K	21W	2410lm	On/Off	115 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090614	4000K	28W	2510lm	DYNADIM	90 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090643	4000K	21W	2530lm	On/Off	120 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246088228	4000K	28W	2510lm	DYNADIM	90 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090902	4000K	21W	2530lm	Lumistep LS8	120 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246087407	4000K	21W	2530lm	On/Off	120 lm/W, Ø600 x H291, Cable 2x1mm² 6m	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
8249044492	Place Wall arm Black Wall arm Aluminium	L350 x W175 x H150	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042083	Galvanized Pole 3m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042096	Galvanized Pole 4m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042106	Galvanized Conical Pole 3m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042119	Galvanized Conical Pole 4m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249043888	Galvanized Conical Pole 3m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249043943	Galvanized Reducer part from Ø76 to Ø60 Steel	L230 x W98 x H230	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249043862	Grey Design pole 3m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249043875	Grey Design pole 3m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249043891	Grey Design pole 4m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249043901	Grey Design pole 4m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044489	Place Wall arm Grey Wall arm Aluminium	L350 x W175 x H150	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042203	Mounting unit		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

References

References

Nord University's second largest campus is located in Røstad near Levanger and is among the most beautiful in the country.

Discover more
References

Sejs Dyner was founded in 1991 by Thomas Sejs as a pure duvet and pillow company, hence the name "Den lille dynefabrik".

Discover more
References

The municipal housing company Gavlegårdarna decided to renovate the northeastern residential area with new balconies, facades and outdoor lighting.

Discover more
Custom made solutions

The town of Landskrona and Landskronahem have built the biggest playground in town (65,000 m2) with the assistance of consulting firm COWI.

Discover more
References

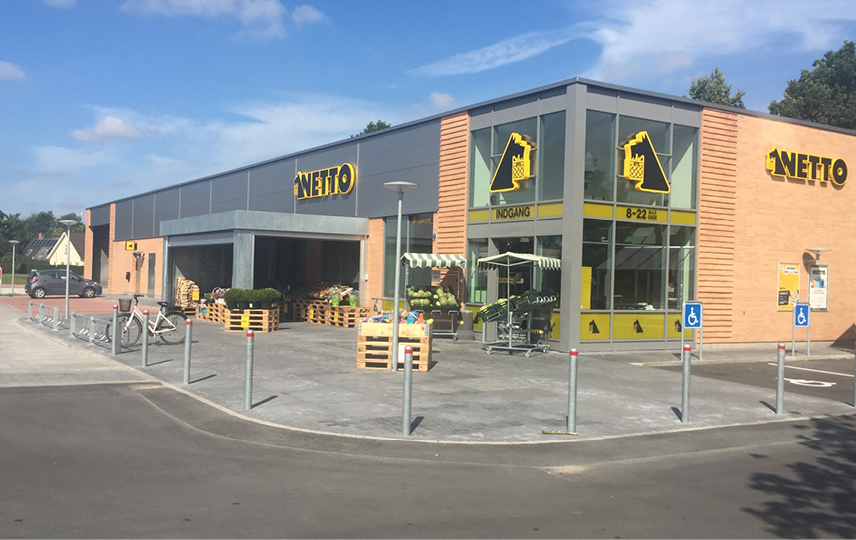

In Skallebølle, west of Odense, Netto has opened a store with a new design. Everything from the colors and music to the merchandise and the clothing of Netto employees has been updated.

Discover more
References

Furnipart is a Danish company famous for designing modern and exclusive furniture fixtures. Furnipart has refurbished its head office in Hinnerup, including the lighting.

Discover more
References

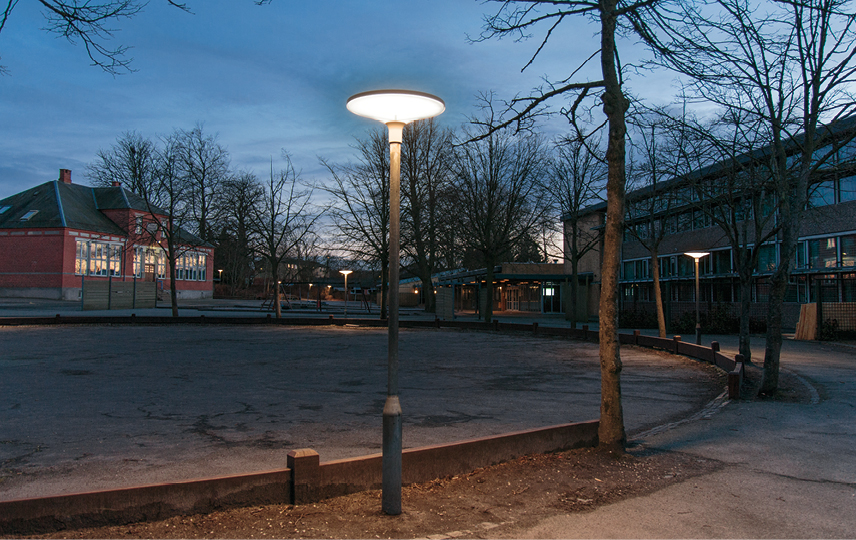

Dalumskolen is a school from 1911 with two or three classes at each level. The school is located in the southern part of Odense and has approx. 600 pupils and 90 employees.
