High5

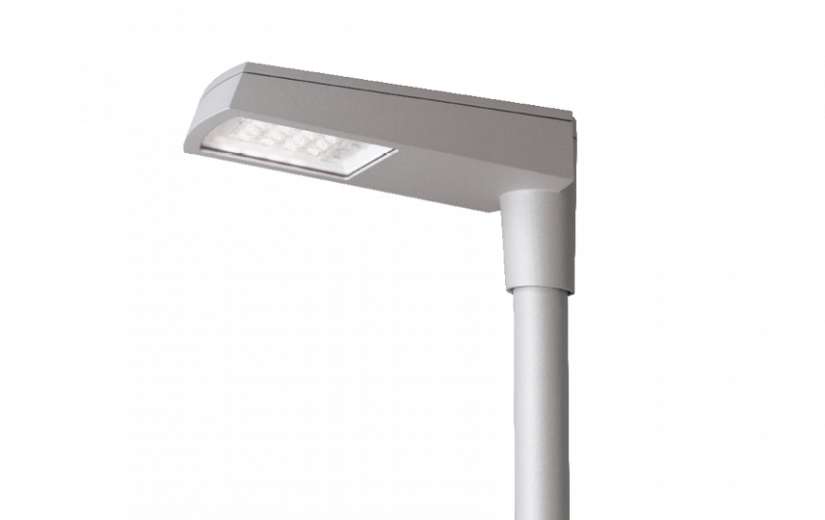

High5 Grey Lens 2 2960lm 4000K Ra>70 On/Off

Article code
8246087931
EAN
5703821167932
Back to articlelist

Overview

Efficacy
129 lm/W
Lumen
2960lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>70
Lifetime
100,000 L90/B10>
Mounting
Post - top (Ø60mm), Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik08
  • ip66
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 8246087931 Eulumdat file (ldt) 5703821167932_High5 Type II Grey 23W 4000K Ra80-15471 Dialux file (uld) 5703821167932_High5 Type II Grey 23W 4000K Ra80

See more

Relux file (rolf) 5703821167932_High5_Grey_Lens_II_2960lm_4000K_Ra_70_On_Off Revit file - Generic High5 - Generic Revit file - Face Based High5 CE Declaration High5

How to specify

Text copied to clipboard

High5 Grey Lens 2 2960lm 4000K Ra>70 On/Off, Article code: 8246087931, EAN: 5703821167932, IP66, IK08, Electrical: System wattage: 23W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 2960lm, Efficacy: 129 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>70, MacAdams factor: SDCM: 3, Lifetime: L90/B10>100,000, Lifetime: L98/B50>50,000, Light distribution: Lens 2, ULOR (<1%): Yes, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IK Class: IK08, IP Class: IP66, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: C, Materials and finish: Housing: Die-cast aluminium, Colour: Grey (structure 2150 sablé), Optics: Glass, Mounting/Connection: Mounting: Post - top (Ø60mm), Outdoor, Cable: Cable 2x1mm² 6m, Wind projected area: 0,0385m² - Max 5 kg, Dimensions: Length (mm) L: 430, Width (mm) W: 175, Height (mm) H: 200, Weight (kg) gross/net: 5.4 / 5.2, Packaging: Packaging dimensions (mm): 430 x 175 x 200

Electrical

System wattage
23W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
2960lm
Efficacy
129 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>70
MacAdams factor
SDCM: 3
Lifetime
L90/B10>100,000
Lifetime
L98/B50>50,000

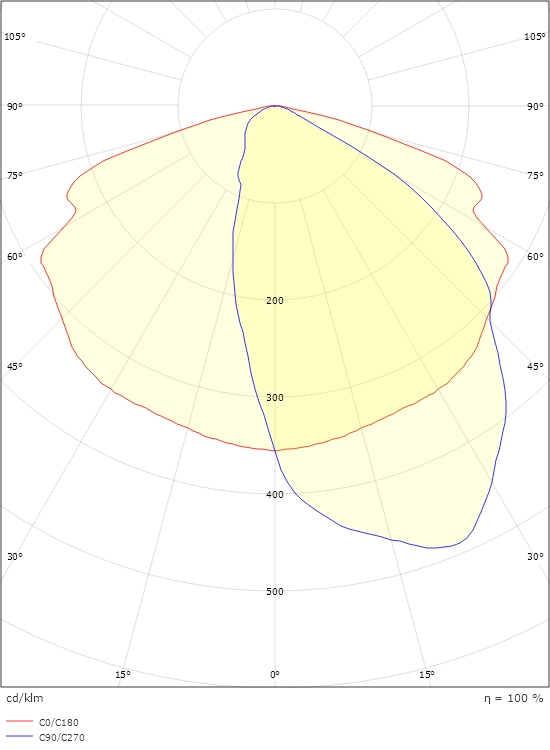

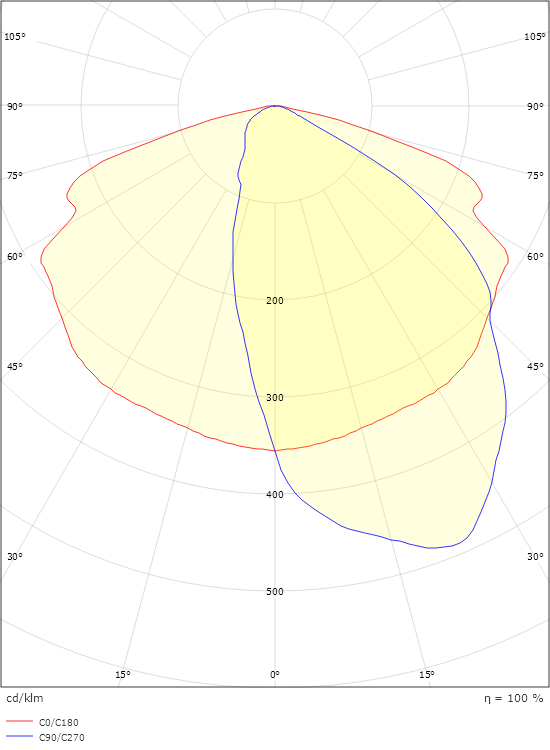

Light distribution
Lens 2
ULOR (<1%)
Yes

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IK Class
IK08
IP Class
IP66
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
C

Materials and finish

Housing
Die-cast aluminium
Colour
Grey (structure 2150 sablé)
Optics
Glass

Mounting/Connection

Mounting
Post - top (Ø60mm), Outdoor
Cable
Cable 2x1mm² 6m
Wind projected area
0,0385m² - Max 5 kg

Dimensions

Length (mm) L
430
Width (mm) W
175
Height (mm) H
200
Weight (kg) gross/net
5.4 / 5.2

Packaging

Packaging dimensions (mm)
430 x 175 x 200
