Ray D
Ray D LED Grey 2830lm 4000K Ra>80 On/Off
- Article code
- 8246087410
- EAN
- 5703821168168
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 109 lm/W
- Lumen
- 2830lm
- IP Class
- IP65
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 70,000 L80/B10>
- Mounting
- Post - top (Ø60mm), Outdoor
Electrical
- System wattage
- 26W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 10, B16: 17, C10: 16, C16: 27
Light technic
- Type of light source
- LED
- Luminous flux
- 2830lm
- Efficacy
- 109 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B10>70,000
- Lifetime
- L90/B50>50,000

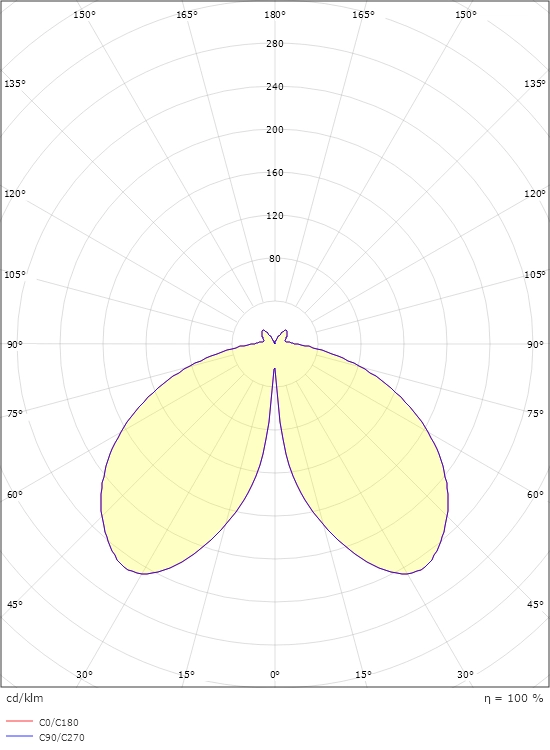

- Light distribution
- Direct
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class II
- IK Class
- IK10
- IP Class
- IP65
- Surge protection
- Integrated (min. 4 kV)
Energy and approvals
- Contains light source of energy class
- C
Materials and finish
- Housing
- Die-cast aluminium
- Colour
- Grey S/30
- Optics
- Polycarbonat (PC)
Mounting/Connection
- Mounting
- Post - top (Ø60mm), Outdoor
- Cable
- Cable 2x1mm² 5,0m
- Wind projected area
- 0,1830m² - Max 7 kg
Dimensions
- Height (mm) H
- 703
- Diameter (mm) D
- 460
- Weight (kg) gross/net
- 12.7 / 13.67
Packaging
- Packaging dimensions (mm)
- 710 x 710 x 790
