EcoLine Office
EcoLine Office 1200 White 4540lm 4000K Ra>80 On/Off
Article code:
8246090517
EAN:
5703821172417
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
30W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 19, B16: 30, C10: 31, C16: 51
Light technic
Type of light source:
LED
Luminous flux:
4540lm
Efficacy:
151 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B10>50,000

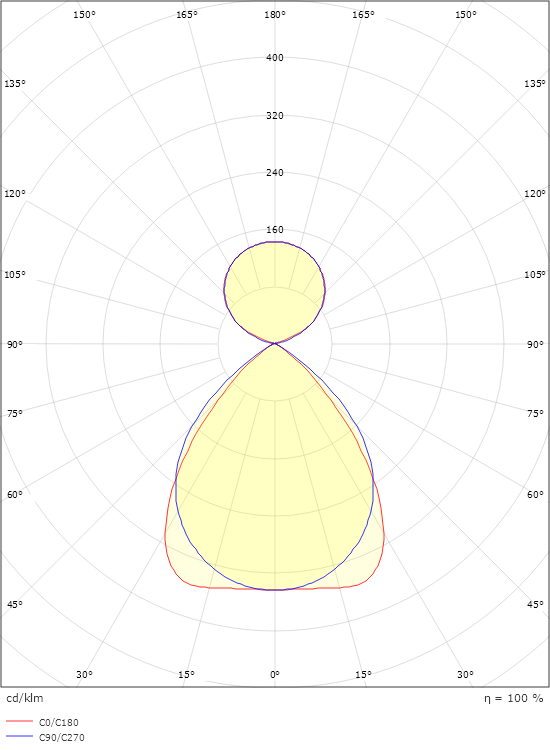

Light distribution:
Direct/Indirect 60/40%
Optic:
Double parabolic louvre, satin matt
UGR:
UGR<16
Control/Dimming
Type:
On/Off
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
C
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Sheet steel
Colour:
White (Pure white, 25% gloss)
Optics:
Aluminium
Mounting/Connection
Mounting:
Suspended, Indoor
Module:
1200
Wire set:
2x2m wire kit w/loop M13 w/2 brackets
Cable:
Cable 3x0,75mm² 2,5m w/ Schuko white
Connection:
Screwless terminal block
Dimensions
Length (mm) L:
1200
Width (mm) W:
142
Height (mm) H:
81
Weight (kg) gross/net:
6.2 / 6
Packaging
Packing dimensions (mm):
1255 x 146 x 95
