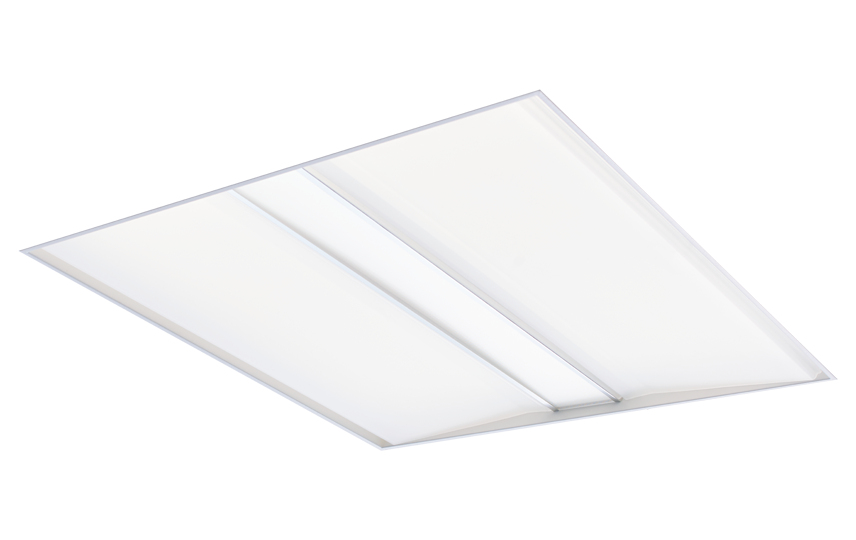

Illusion Soft LED
Illusion Soft LED 600x600 3790lm 4000K Ra>80 DALI Emergency 3H
Article code:
8246086217
EAN:
5703821170307
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
30W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 17, B16: 28, C10: 27, C16: 45
Light technic
Type of light source:
LED
Luminous flux:
3790lm
Emergency lumen:
EM 600lm
Efficacy:
126 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B10>60,000
Minimum ambient temperature:
0°C

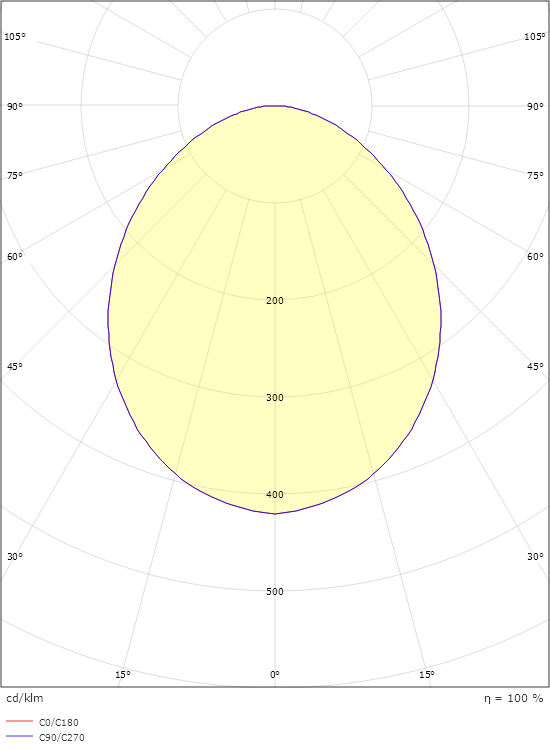

Light distribution:
Direct
Optic:
Opalprism
Control/Dimming
Type:
DALI Emergency 3H
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
D
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Sheet steel
Colour:
White (RAL 9010, 20% gloss)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Recessed, Indoor
Module:
600x600 Exposed T-carrier 15/24mm
Connection:
5 pol Winsta / Terminal block

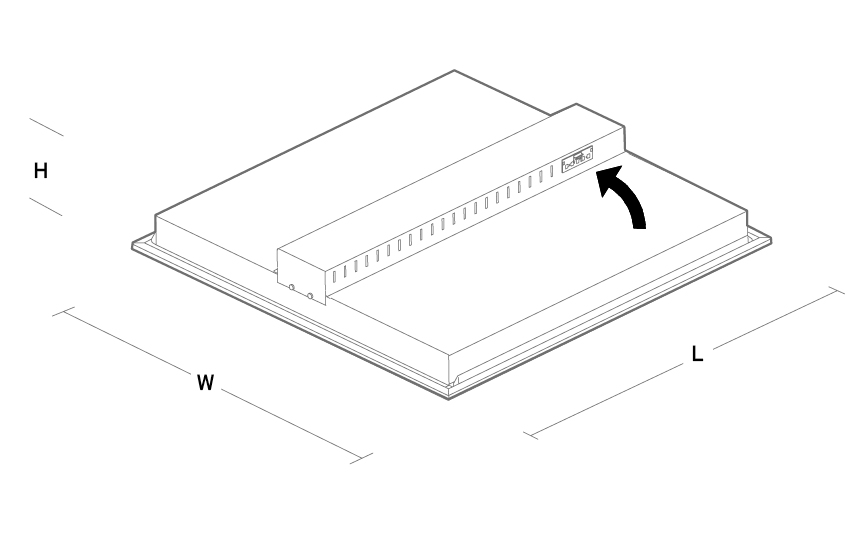

Dimensions
Length (mm) L:
595
Width (mm) W:
595
Height (mm) H:
126
Weight (kg) gross/net:
4.8 / 4.6
Packaging
Packing dimensions (mm):
635 x 625 x 125
