Velios LED

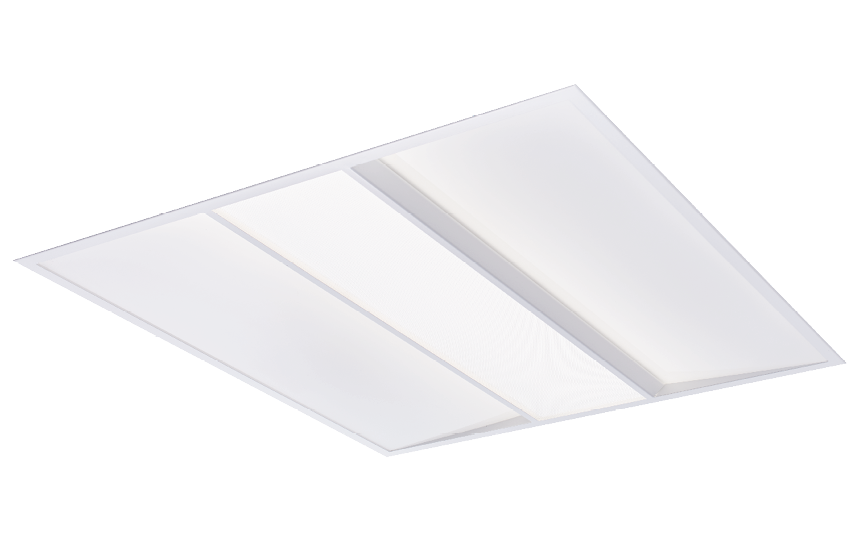

Velios LED 600x600 White 4540lm 4000K Ra>80 Emergency 3H
Article code:
8246078128
EAN:
5703821169479
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
34W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 19, B16: 30, C10: 31, C16: 51
Light technic
Type of light source:
LED
Luminous flux:
4540lm
Emergency lumen:
EM 420 lm
Efficacy:
134 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L90/B10>50,000
Minimum ambient temperature:
0°C
Light distribution:
Direct
Optic:
Lens C, prismatic Conical
Control/Dimming
Type:
Emergency 3H
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
D
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Sheet steel
Colour:
White smooth (Ral 9016 gloss 30)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Recessed, Indoor
Module:
600x600 Exposed T-carrier 15/24mm
Connection:
Male 5 pol Winsta - Female 5 pol Winsta
Dimensions
Length (mm) L:
595
Width (mm) W:
595
Height (mm) H:
66
Ceiling void depth (mm):
66
Weight (kg) gross/net:
6.6 / 6.4
Packaging
Packing dimensions (mm):
605 x 605 x 95
