Disc 290

Disc 290 White 2000lm 2700K Ra>80 Sensor Dim

Article code
606037
EAN
7021986060379
Back to articlelist

Overview

Efficacy
118 lm/W
Lumen
2000lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ik10
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 606037 Mounting instruction Disc 290 Sensor Dim_User Manual Eulumdat file (ldt) 7021986060379_Disc 290 White 2000lm 2700K Ra80 Sensor Dim

See more

Dialux file (uld) 7021986060379_Disc 290 White 2000lm 2700K Ra80 Sensor Dim Relux file (rolf) 7021986060379_Disc_290_White_2000lm_2700K_Ra_80_Sensor_Dim Revit file - Generic Disc 290 - Generic Revit file - Face Based Disc 290- face based CE Declaration Disc 290

How to specify

Text copied to clipboard

Disc 290 White 2000lm 2700K Ra>80 Sensor Dim, Article code: 606037, EAN: 7021986060379, IP20, IK10, Electrical: System wattage: 17W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 2000lm, Efficacy: 118 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 85°, UGR: UGR<25, Control/Dimming: Type: Sensor Dim, Sensor type: Pure motion sensor, independent of lux level, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C-, Materials and finish: Housing: Aluminium, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 55, Diameter (mm) D: 288, Weight (kg) gross/net: 2.005 / 1.846, Packaging: Packaging dimensions (mm): 308 x 303 x 60

Electrical

System wattage
17W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
2000lm
Efficacy
118 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

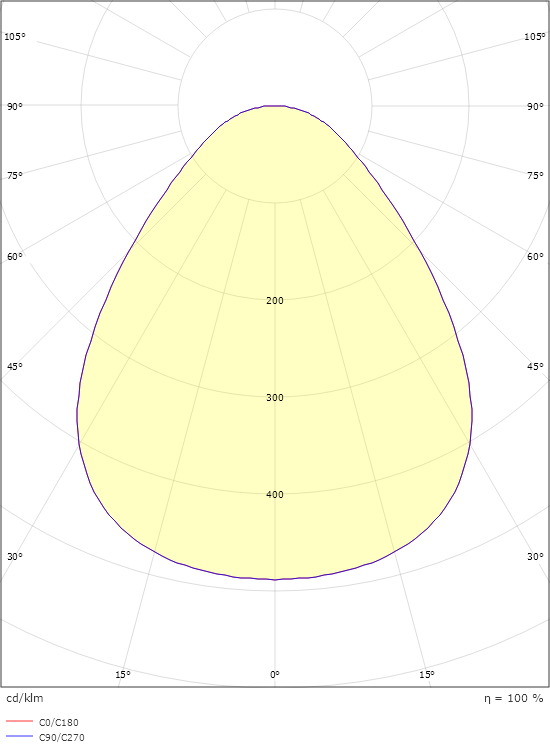

Light distribution
Direct
Optic
Opalprism
Beam angle
85°
UGR
UGR<25

Control/Dimming

Type
Sensor Dim
Sensor type
Pure motion sensor, independent of lux level

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C-

Materials and finish

Housing
Aluminium
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
55
Diameter (mm) D
288
Weight (kg) gross/net
2.005 / 1.846

Packaging

Packaging dimensions (mm)
308 x 303 x 60
