Lineal Suspended

Lineal suspended 1120 Black 3300lm 3000K Ra>80 DALI-2

Article code
8246094623
EAN
5703821177962
Back to articlelist

Overview

Efficacy
114 lm/W
Lumen
3300lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • el
  • flickerfree
  • ik08
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246094623 Revit file - Generic Lineal S 1120 - generic Revit file - Ceiling Based Lineal Suspended 1120 - ceiling based

See more

Eulumdat file (ldt) 5703821177962_Lineal S 1120 Black 29W LED 3000K Ra80 PrismaticOpal-41811 Dialux file (uld) 5703821177962_Lineal S 1120 Black 29W LED 3000K Ra80 PrismaticOpal Relux file (rolf) 5703821177962_Lineal_suspended_1120_Black_3300lm_3000K_Ra_80_DALI EPD NEPD-4810-4071_Lineal-Suspended-1120 Mounting instruction Lineal Suspended_User Manual CE Declaration Lineal Suspended

How to specify

Text copied to clipboard

Lineal suspended 1120 Black 3300lm 3000K Ra>80 DALI-2, Article code: 8246094623, EAN: 5703821177962, IP20, IK08, Electrical: System wattage: 29W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 13, B16: 20, C10: 21, C16: 33, Leakage current (mA): 0.29, Light technic: Type of light source: LED, Luminous flux: 3300lm, Efficacy: 114 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Lifetime: L93/>50,000, Light distribution: Direct/Indirect 50/50%, UGR: UGR<22, Photobiological safety: RG 1, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Black, Mounting/Connection: Mounting: Suspended, Indoor, Module: 1120, Wire set: 1x2m wire kit w/ceiling bracket, Connection: 5-pole Winsta mini with 5x2,5mm2 through wiring, Dimensions: Length (mm) L: 1121, Width (mm) W: 42, Height (mm) H: 70, Weight (kg) gross/net: 2.8 / 2.6, Packaging: Packaging dimensions (mm): 1275 x 50 x 80

Electrical

System wattage
29W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 13, B16: 20, C10: 21, C16: 33
Leakage current (mA)
0.29

Light technic

Type of light source
LED
Luminous flux
3300lm
Efficacy
114 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Lifetime
L93/>50,000

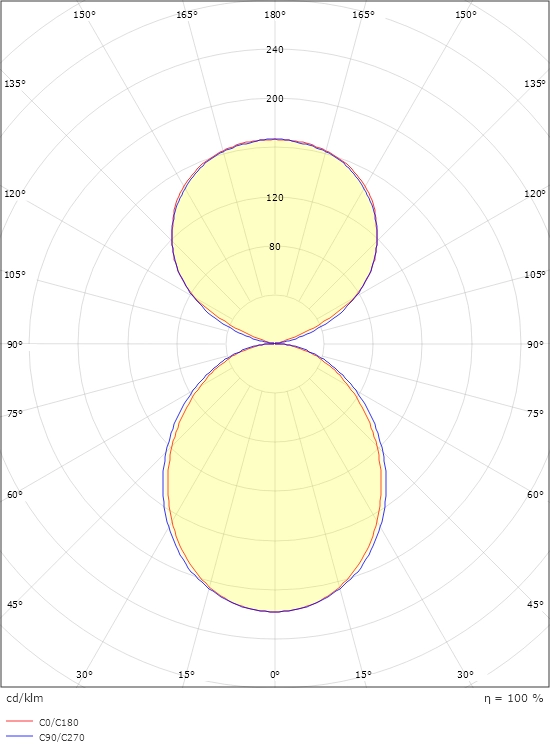

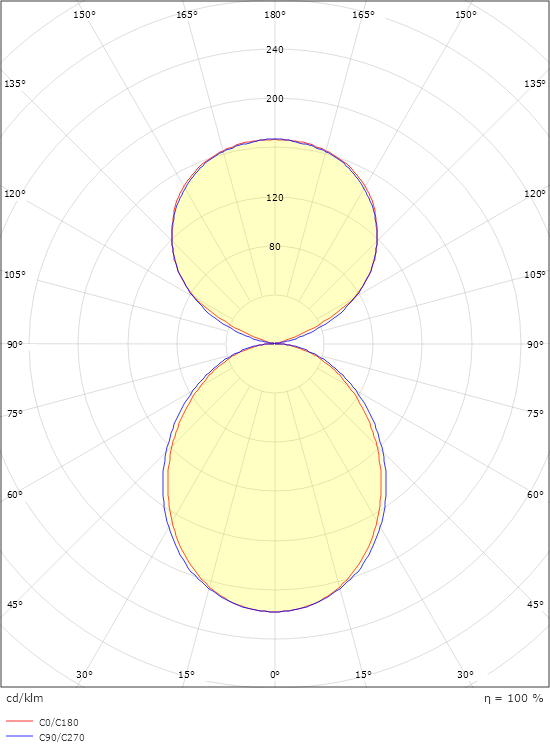

Light distribution
Direct/Indirect 50/50%
UGR
UGR<22
Photobiological safety
RG 1

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Black

Mounting/Connection

Mounting
Suspended, Indoor
Module
1120
Wire set
1x2m wire kit w/ceiling bracket
Connection
5-pole Winsta mini with 5x2,5mm2 through wiring

Dimensions

Length (mm) L
1121
Width (mm) W
42
Height (mm) H
70
Weight (kg) gross/net
2.8 / 2.6

Packaging

Packaging dimensions (mm)
1275 x 50 x 80
