Lineal Suspended

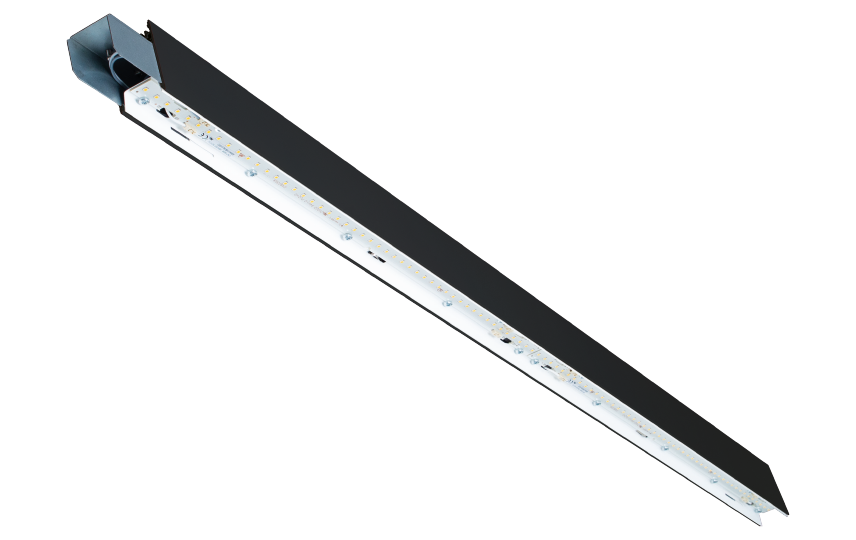

Lineal suspended 1400 Black 4500lm 4000K Ra>80 DALI Emergency 3 hours

Article code
8246094859
EAN
5703821178549
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
122 lm/W
Lumen
4500lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246094859 Mounting instruction Lineal Suspended_User Manual CE Declaration Lineal Suspended Relux file (rolf) 5703821178549_Lineal_suspended_1400_Black_4500lm_4000K_Ra_80_Emergency_3H Eulumdat file (ldt) 5703821178549_Lineal S 1400 Black 37W LED 4000K Ra80 Emergency PrismaticOpal-41951 Dialux file (uld) 5703821178549_Lineal S 1400 Black 37W LED 4000K Ra80 Emergency PrismaticOpal Revit file - Generic Lineal Suspended 1400 - generic Revit file - Ceiling Based Lineal Suspended 1400 - ceiling based

How to specify

Text copied to clipboard

Lineal suspended 1400 Black 4500lm 4000K Ra>80 DALI Emergency 3 hours, Article code: 8246094859, EAN: 5703821178549, IP20, Electrical: System wattage: 37W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 4500lm, Emergency lumen: 390lm, Efficacy: 122 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Lifetime: L93/>50,000, Minimum ambient temperature: 0°C, Light distribution: Direct/Indirect 50/50%, UGR: UGR<22, Photobiological safety: RG 1, Control/Dimming: Type: DALI Emergency 3 hours, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Materials and finish: Housing: Aluminium, Colour: Black, Mounting/Connection: Mounting: Suspended, Indoor, Module: 1400, Wire set: 1x2m wire kit w/ceiling bracket, Connection: 5-pole Winsta mini with 5x1,5mm2 through wiring, Dimensions: Length (mm) L: 1401, Width (mm) W: 42, Height (mm) H: 70, Weight (kg) gross/net: 3.3 / 3.1, Packaging: Packaging dimensions (mm): 1490 x 44 x 71

Electrical

System wattage
37W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
4500lm
Emergency lumen
390lm
Efficacy
122 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Lifetime
L93/>50,000
Minimum ambient temperature
0°C

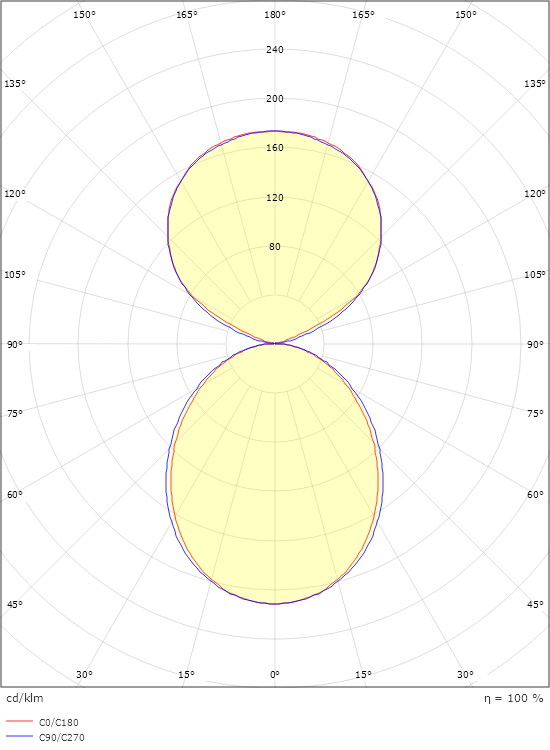

Light distribution
Direct/Indirect 50/50%

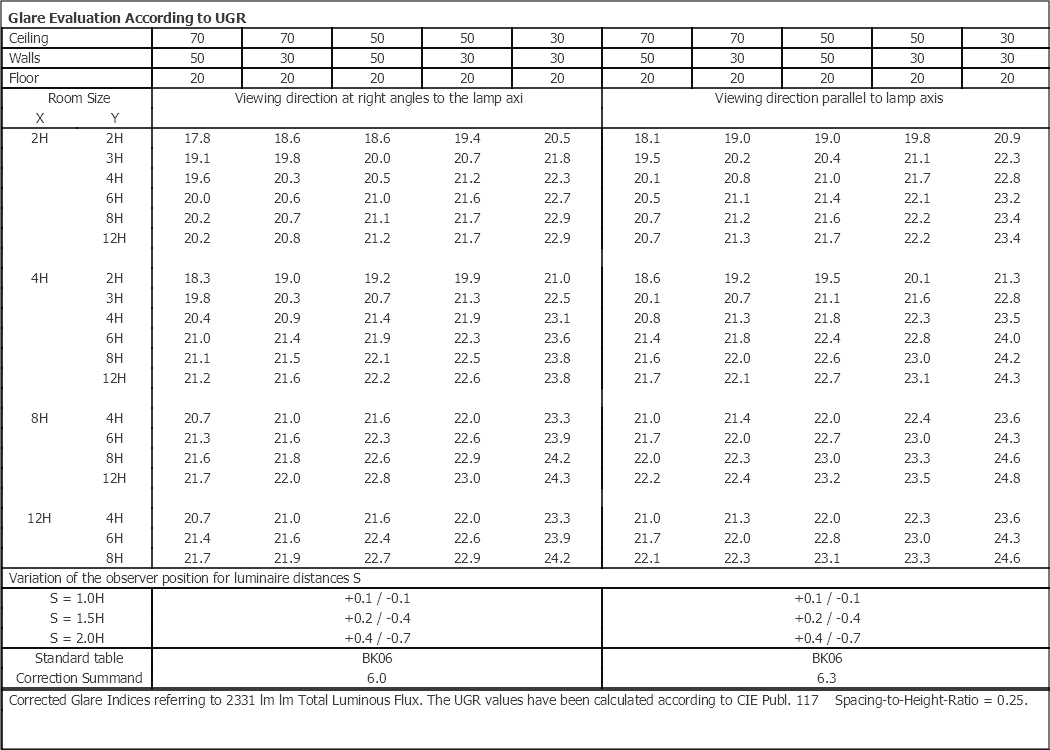

UGR
UGR<22
Photobiological safety
RG 1

Control/Dimming

Type
DALI Emergency 3 hours

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
D

Materials and finish

Housing
Aluminium
Colour
Black

Mounting/Connection

Mounting
Suspended, Indoor
Module
1400
Wire set
1x2m wire kit w/ceiling bracket
Connection
5-pole Winsta mini with 5x1,5mm2 through wiring

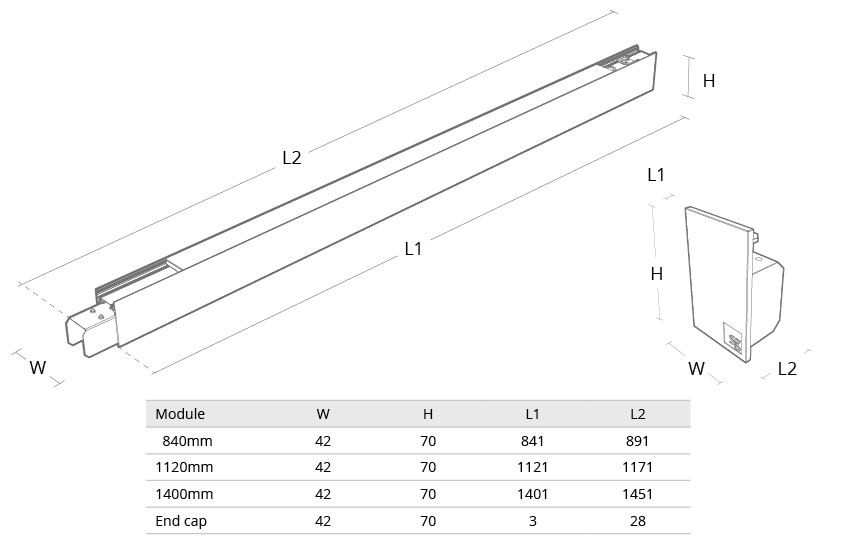

Dimensions

Length (mm) L
1401
Width (mm) W
42
Height (mm) H
70
Weight (kg) gross/net
3.3 / 3.1

Packaging

Packaging dimensions (mm)
1490 x 44 x 71
