Disc 290

Disc 290 White 2000lm 2700K Ra>80 Trailing edge

Article code
606034
EAN
7021986060348
Back to articlelist

Overview

Efficacy
118 lm/W
Lumen
2000lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ik10
  • ip20
  • klasse_2
  • ce
  • enec

Tools

Downloads

Specification sheet 606034 Eulumdat file (ldt) 7021986060348_Disc 290 White 2000lm 2700K Ra80 Trailing edge dimming Dialux file (uld) 7021986060348_Disc 290 White 2000lm 2700K Ra80 Trailing edge dimming

See more

Relux file (rolf) 7021986060348_Disc_290_White_2000lm_2700K_Ra_80_Trailing_edge_dimming ENEC Certificate DISC 290 EPD NEPD-6872-6264_Disc-290 Revit file - Generic Disc 290 - Generic Revit file - Face Based Disc 290- face based Mounting instruction Disc 290_User Manuals CE Declaration Disc 290

How to specify

Text copied to clipboard

Disc 290 White 2000lm 2700K Ra>80 Trailing edge, Article code: 606034, EAN: 7021986060348, IP20, IK10, Electrical: System wattage: 17W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 2000lm, Efficacy: 118 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 85°, UGR: UGR<25, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Aluminium, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 55, Diameter (mm) D: 288, Weight (kg) gross/net: 2.005 / 1.846, Packaging: Packaging dimensions (mm): 308 x 303 x 60

Electrical

System wattage
17W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
2000lm
Efficacy
118 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

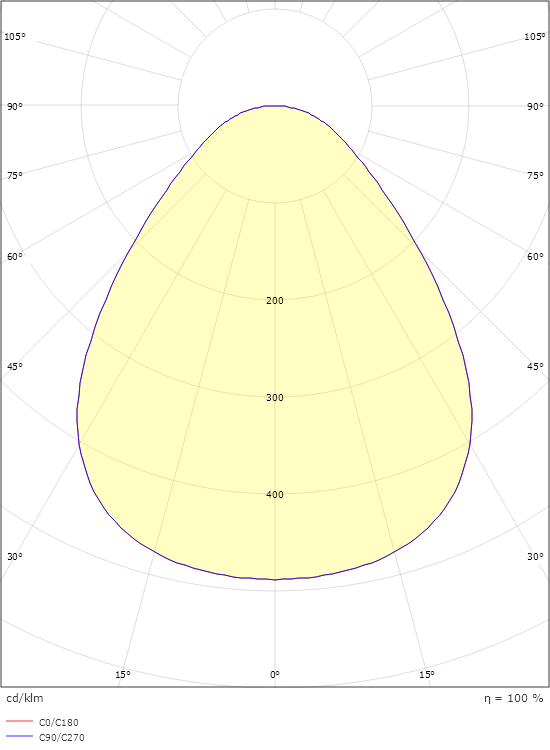

Light distribution
Direct
Optic
Opalprism
Beam angle
85°
UGR
UGR<25

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Aluminium
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
55
Diameter (mm) D
288
Weight (kg) gross/net
2.005 / 1.846

Packaging

Packaging dimensions (mm)
308 x 303 x 60
