Wax

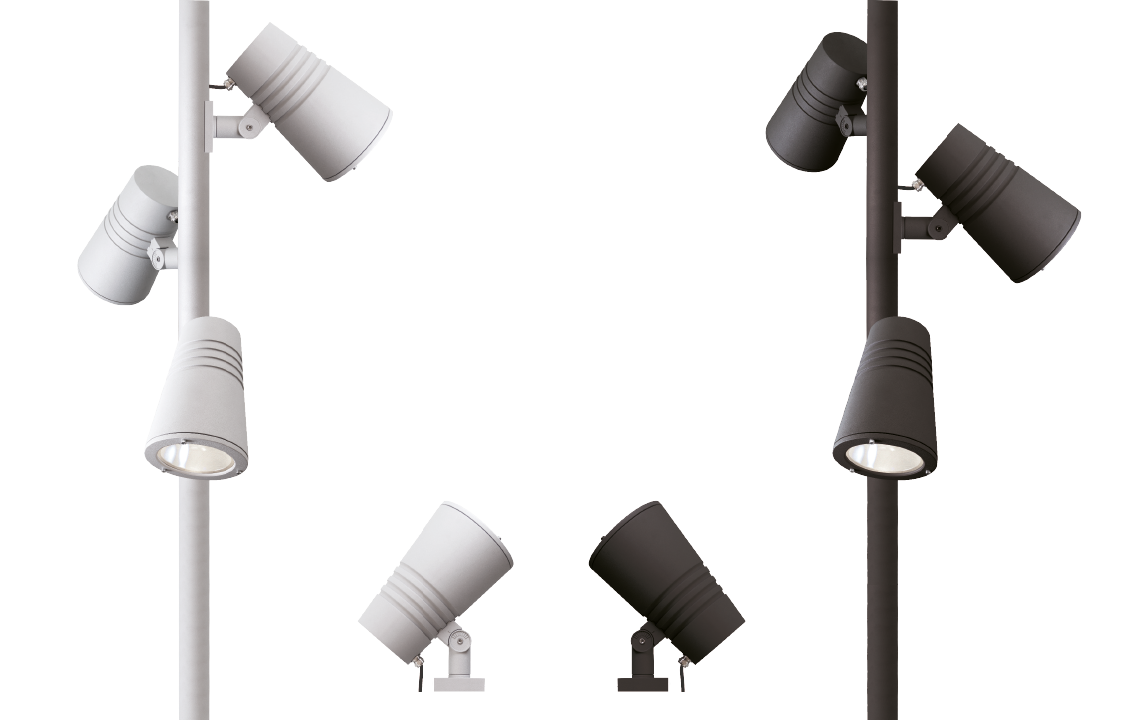

Design: Christian Hvidt. Spot LED luminaire. IP66 simple LED luminaire. Base and top made of die-cast aluminium, front made of tempered glass. Light grey or black frame treated for use outdoors. Direct optics with several solutions. Complete with LED driver for operation of LED light sources mounted to component rail.
Pre-mounted with connecting cable (10 m). Prepared for mounting on a mast. Safety class IIWax is as standard available with 13o and 27o reflector (45o reflector on request). Mast and wall consoles are not included but are sold separately.
Design: Christian Hvidt
Article list
Wax
:
Outdoor
Light distribution:
Direct
Mounting type:
Pole, wall, bollard or earthing rod
SDCM:
2
Luminaire class:
Class II
IK Class:
IK07
IP Class:
IP66
Colour rendering (Ra):
Ra>80
Lifetime:
L90/B10> 100,000
Filters
| Others | Tools | |||||||
|---|---|---|---|---|---|---|---|---|
| 27° | 3000K | 34W | 3500lm | Lumistep LS8 50% Dim |
|
|||
| 13° | 3000K | 48W | 3200lm | Lumistep LS8 50% Dim |
|
|||
| 27° | 3000K | 1450/2420lm | On/Off |
|
||||
| 13° | 3000K | 1370/2460lm | On/Off |
|
||||
| 27° | 3000K | 34W | 3500lm | On/Off |
|
|||
| 13° | 3000K | 48W | 3200lm | On/Off |
|
|||
| 13° | 3000K | 48W | 3200lm | Lumistep LS8 50% Dim |
|
|||
| 27° | 3000K | 34W | 3500lm | Lumistep LS8 50% Dim |
|
|||
| 13° | 3000K | 48W | 3200lm | On/Off |
|
|||
| 27° | 3000K | 34W | 3500lm | On/Off |
|
|||
| 13° | 3000K | 1370/2460lm | On/Off |
|
||||
| 27° | 3000K | 1450/2420lm | On/Off |
|
||||
| 27° | 4000K | 41W | 3710lm | Lumistep LS8 50% Dim |
|
|||
| 13° | 4000K | 48W | 3200lm | Lumistep LS8 50% Dim |
|
|||
| 27° | 4000K | 1480/2520lm | On/Off |
|
||||
| 13° | 4000K | 1370/2460lm | On/Off |
|
||||
| 27° | 4000K | 41W | 3710lm | On/Off |
|
|||
| 13° | 4000K | 48W | 3200lm | Lumistep LS8 50% Dim |
|
|||
| 27° | 4000K | 41W | 3710lm | Lumistep LS8 50% Dim |
|
|||
| 13° | 4000K | 48W | 3200lm | On/Off |
|
|||
| 27° | 4000K | 41W | 3710lm | On/Off |
|
|||
| 13° | 4000K | 1370/2460lm | On/Off |
|
||||
| 27° | 4000K | 1480/2520lm | On/Off |
|
Black
Grey
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Sorry, we couldn’t find what you are looking for.
| Others | Tools | |||||||
|---|---|---|---|---|---|---|---|---|
| 27° | 3000K | 34W | 3500lm | Lumistep LS8 50% Dim |
|
|||
| 13° | 3000K | 48W | 3200lm | Lumistep LS8 50% Dim |
|
|||
| 27° | 3000K | 1450/2420lm | On/Off |
|
||||
| 13° | 3000K | 1370/2460lm | On/Off |
|
||||
| 27° | 3000K | 34W | 3500lm | On/Off |
|
|||
| 13° | 3000K | 48W | 3200lm | On/Off |
|
|||
| 13° | 3000K | 48W | 3200lm | Lumistep LS8 50% Dim |
|
|||
| 27° | 3000K | 34W | 3500lm | Lumistep LS8 50% Dim |
|
|||
| 13° | 3000K | 48W | 3200lm | On/Off |
|
|||
| 27° | 3000K | 34W | 3500lm | On/Off |
|
|||
| 13° | 3000K | 1370/2460lm | On/Off |
|
||||
| 27° | 3000K | 1450/2420lm | On/Off |
|
||||
| 27° | 4000K | 41W | 3710lm | Lumistep LS8 50% Dim |
|
|||
| 13° | 4000K | 48W | 3200lm | Lumistep LS8 50% Dim |
|
|||
| 27° | 4000K | 1480/2520lm | On/Off |
|
||||
| 13° | 4000K | 1370/2460lm | On/Off |
|
||||
| 27° | 4000K | 41W | 3710lm | On/Off |
|
|||
| 13° | 4000K | 48W | 3200lm | Lumistep LS8 50% Dim |
|
|||
| 27° | 4000K | 41W | 3710lm | Lumistep LS8 50% Dim |
|
|||
| 13° | 4000K | 48W | 3200lm | On/Off |
|
|||
| 27° | 4000K | 41W | 3710lm | On/Off |
|
|||
| 13° | 4000K | 1370/2460lm | On/Off |
|
||||
| 27° | 4000K | 1480/2520lm | On/Off |
|
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Sorry, we couldn’t find what you are looking for.
Accessories
| Image | Article code | Description | Dimensions | Tools |
|---|---|---|---|---|
| Wax Black Earthspear | L406 x W80 x H80 | |||
| Wax Black Pole and wall consol | L90 x W45 x H49 | |||
| Wax Black | L759 x W160 x H160 | |||
| Wax Black Visor | L179 x W179 x H110 | |||
| Wax Black Wall arm | L550 x W136 x H136 | |||
| Wax Black Wall box | L136 x W136 x H49 | |||
| Wax Black Design pole 4m | L4800 x W120 x H120 | |||
| Wax Black Design pole 6m | L6800 x W132 x H132 | |||
| Wax Black Design pole 8m | L8800 x W153 x H153 | |||
| Wax Black Side arm | L120 | |||
| Wax Galvanized Pole conical 4m | L4800 x W120 x H120 | |||
| Wax Galvanized Pole conical 6m | L6800 x W132 x H132 | |||
| Wax Galvanized Pole conical 8m | L8800 x W153 x H153 | |||
| Wax Grey Wall box | L136 x W136 x H49 | |||
| Wax Grey Earthspear | L406 x W80 x H80 | |||
| Wax Grey Visor | L179 x W179 x H110 | |||
| Wax Grey Pole and wall consol | L90 x W45 x H49 | |||
| Wax Grey Wall arm | L550 x W136 x H136 | |||
| Wax Grey Bollard | L759 x W160 x H160 | |||
| Wax Grey Design pole 4m | L4800 x W120 x H120 | |||
| Wax Grey Design pole 6m | L6800 x W132 x H132 | |||
| Wax Grey Design pole 8m | L8800 x W153 x H153 | |||
| Wax Grey Side arm | L120 | |||
| Ground anchor | L248 x W108 x H450 | |||
| Ground anchor f/"Cetong" | Ø155 x H450 |
=
