High5
High5 Grey Lens 1 2080lm 3000K Ra>70 On/Off
Article code:
8246087889
EAN:
5703821167963
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
18W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 32, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
2080lm
Efficacy:
116 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>70
MacAdams factor:
SDCM: 3
Lifetime:
L80/B10>80,000

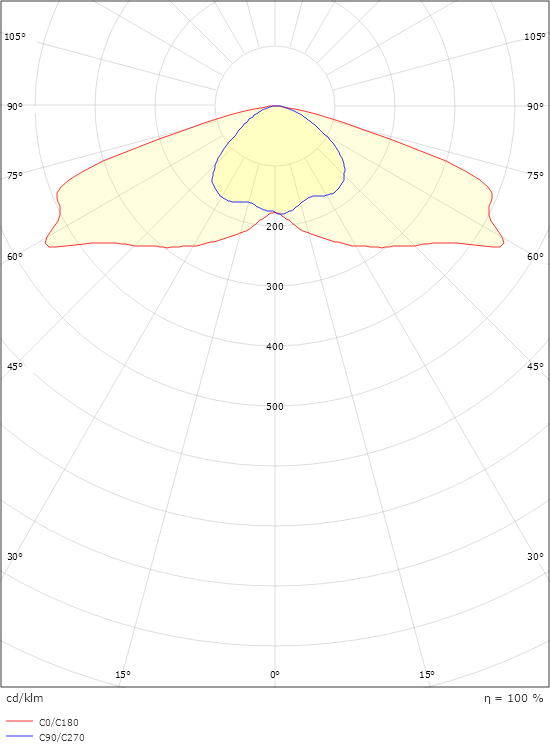

Light distribution:
Lens 1
Optic:
Lens
ULOR (<1%):
Yes
Control/Dimming
Type:
On/Off
Protection
Luminaire class:
Class II
IK Class:
IK08
IP Class:
IP66
Integrated surge protection:
Integrated (min. 4 kV)
Energy and approvals
Contains light source of energy class:
C
Materials and finish
Housing:
Die-cast aluminium
Colour:
Grey (structure 2150 sablé)
Optics:
Tempered glass
Mounting/Connection
Mounting:
Post - top (Ø60mm), Outdoor
Cable:
Cable 2x1mm² 6m
Wind projected area:
0,0385m² - Max 5 kg
Dimensions
Length (mm) L:
430
Width (mm) W:
175
Height (mm) H:
200
Weight (kg) gross/net:
5.3 / 5.1
Packaging
Packing dimensions (mm):
445 x 185 x 210
