Junistar Lux
Junistar Lux Brushed steel 580lm 2700K Ra 98 DALI-2
- Article code
- 902512
- EAN
- 7021989025122
Overview
- Wattage
- 7W
- Efficacy
- 73 lm/W
- Lumen
- 580lm
- IP Class
- IP44/IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
Electrical
- Wattage
- 7W
- System wattage
- 8W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 105, B16: 168, C10: 105, C16: 168
Light technic
- Type of light source
- LED
- Luminous flux
- 580lm
- Efficacy
- 73 lm/W
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra 98
- MacAdams factor
- SDCM: 1
- Lifetime
- L90/B10>100,000

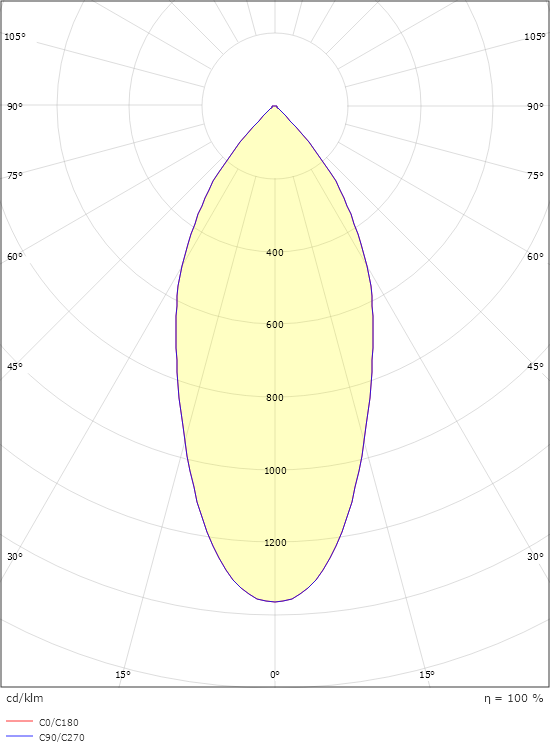

- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<22
Control/Dimming
- Type
- DALI-2
Protection
- Luminaire class
- Class II SELV
- IP Class
- IP44/IP20
Energy and approvals
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- Brushed steel
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Recessed, Indoor
- Connection
- 5 pol Linect / screwless terminal block
Dimensions
- Height (mm) H
- 50
- Diameter (mm) D
- 94
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 48
- Weight (kg) gross/net
- 0.395 / 0.325
Packaging
- Packaging dimensions (mm)
- 130 x 115 x 75
